H2159-01

H2159-01

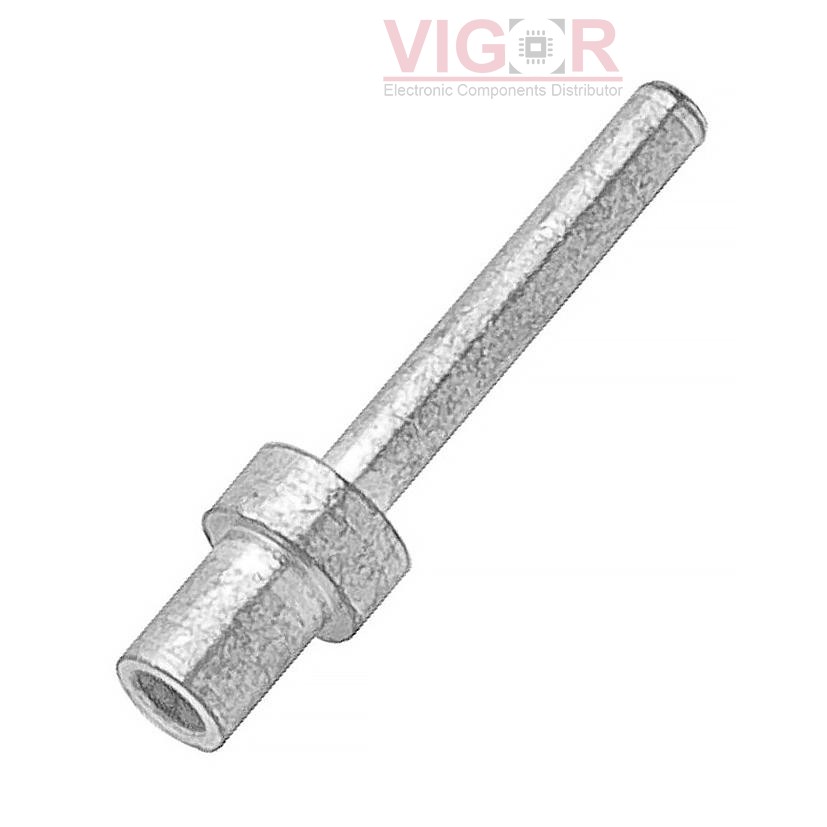

Image is for reference,
please contact us to get the real picture

Part No :

H2159-01

Manufacturer
Harwin
Description
CONN PC PIN CIRC .64DIA TIN/NICK
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
H2159-01 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of H2159-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2159-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.025" (0.64mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.165" (4.18mm)
Length - Below Flange:0.051" (1.30mm)
Length - Overall:0.240" (6.10mm)
Flange Diameter:0.057" (1.45mm)
Mounting Hole Diameter:0.042" ~ 0.045" (1.07mm ~ 1.14mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.031" (0.79mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:-
