H2157-01

H2157-01

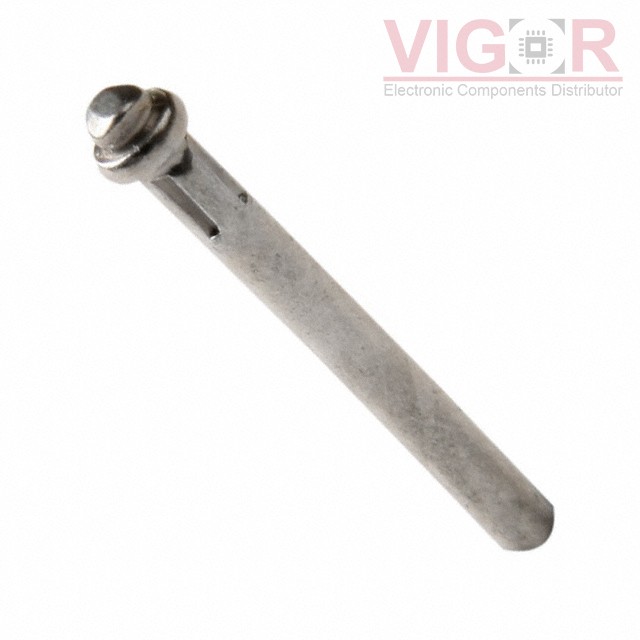

Image is for reference,
please contact us to get the real picture

Part No :

H2157-01

Manufacturer
Harwin
Description
CONN PC PIN CIRC 0.050DIA TIN
Catalog
Terminals - PC Pin, Single Post Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
H2157-01 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of H2157-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2157-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Terminal Type:PC Pin
Terminal Style:Single End
Pin Size - Above Flange:0.050" (1.27mm) Dia
Pin Size - Below Flange:-
Length - Above Flange:0.449" (11.40mm)
Length - Below Flange:0.030" (0.76mm)
Length - Overall:0.504" (12.80mm)
Flange Diameter:0.088" (2.24mm)
Mounting Hole Diameter:0.055" ~ 0.059" (1.40mm ~ 1.50mm)
Mounting Type:Through Hole
Termination:Swage
Insulation:Non-Insulated
Board Thickness:0.063" ~ 0.094" (1.60mm ~ 2.39mm)
Contact Material:Brass
Contact Finish:Tin
Contact Finish Thickness:300.0µin (7.62µm)
