Type | Description |
---|---|
Series: | - |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | Single End |
Number of Turrets: | Single |
Length - Above Board: | 0.234" (5.94mm) |
Length - Below Flange: | 0.135" (3.43mm) |
Length - Overall: | 0.369" (9.37mm) |
Mounting Type: | Through Hole |
Termination: | Staking Flare |
Flange Diameter: | 0.187" (4.75mm) |
Diameter - Turret Head: | 0.145" (3.68mm) |
Staking Side OD: | 0.112" (2.84mm) |
Staking Side ID: | - |
Mounting Hole Diameter: | 0.116" (2.95mm) |
Board Thickness: | 0.093" (2.36mm) |
Contact Material: | Brass |
Contact Finish: | Tin |
Contact Finish Thickness: | - |
Insulation: | Non-Insulated |

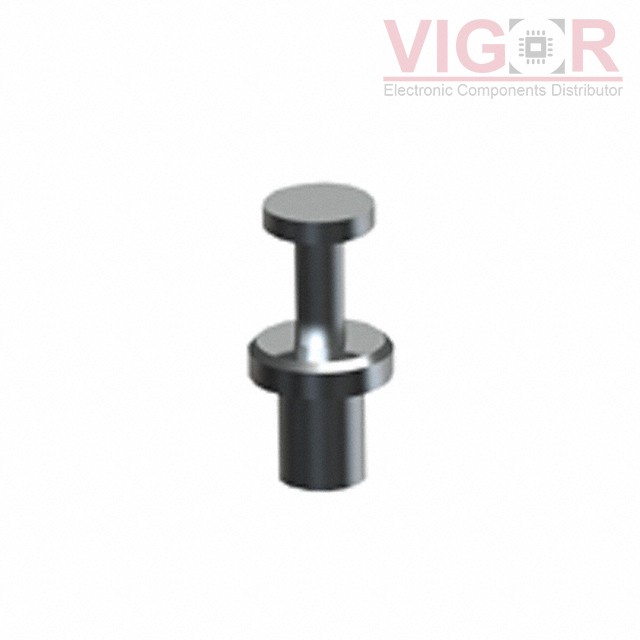

TERM TURRET SINGLE L=5.94MM TIN
