Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 2508-2-00-44-00-00-07-0 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

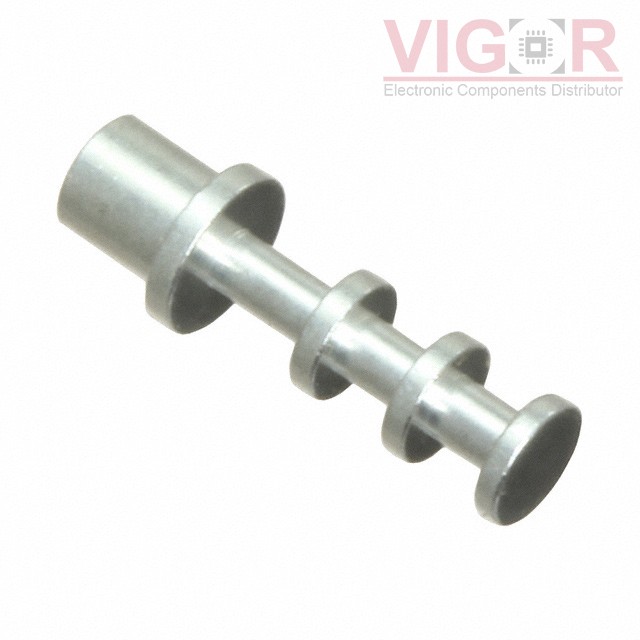

Type | Description |
---|---|
Series: | 2508 |
Package: | Bulk |
Part Status: | Active |
Terminal Type: | Single End |
Number of Turrets: | Triple |
Length - Above Board: | 0.301" (7.65mm) |
Length - Below Flange: | 0.094" (2.39mm) |
Length - Overall: | 0.395" (10.03mm) |
Mounting Type: | Through Hole |
Termination: | Swage |
Flange Diameter: | 0.125" (3.18mm) |
Diameter - Turret Head: | 0.093" (2.36mm) |
Staking Side OD: | 0.090" (2.29mm) |
Staking Side ID: | 0.064" (1.63mm) |
Mounting Hole Diameter: | 0.094" (2.39mm) |
Board Thickness: | 0.062" (1.57mm) |
Contact Material: | Brass Alloy |
Contact Finish: | Silver |
Contact Finish Thickness: | 300.0µin (7.62µm) |
Insulation: | Non-Insulated |
