Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of H3051-01 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Bulk |
Part Status: | Active |

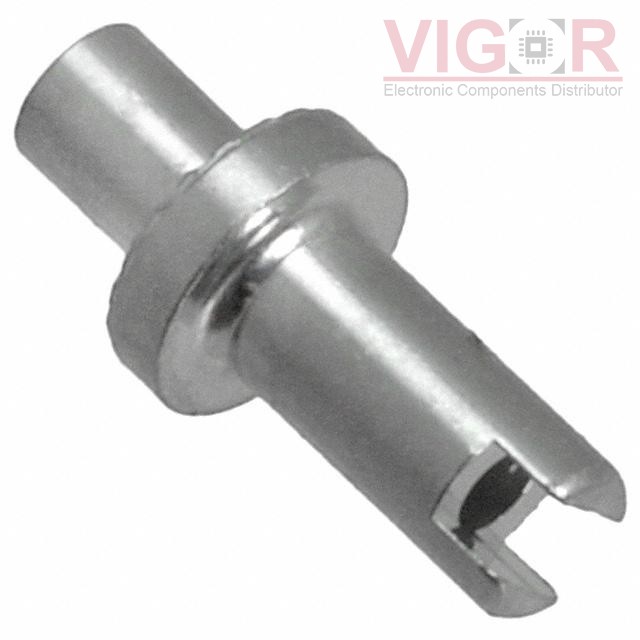

Terminal Type: | Single End, Fork, Hollow |
Number of Turrets: | Single |
Length - Above Board: | 0.247" ~ 0.260" (6.27mm ~ 6.60mm) |
Length - Below Flange: | 0.094" ~ 0.099" (2.39mm ~ 2.51mm) |
Length - Overall: | 0.346" ~ 0.354" (8.79mm ~ 8.99mm) |
Mounting Type: | Through Hole |
Termination: | Swage |
Flange Diameter: | 0.153" ~ 0.159" (3.88mm ~ 4.04mm) |
Diameter - Turret Head: | - |
Staking Side OD: | 0.080" ~ 0.083" (2.03mm ~ 2.12mm) |
Staking Side ID: | - |
Mounting Hole Diameter: | 0.084" ~ 0.087" (2.13mm ~ 2.21mm) |
Board Thickness: | 0.063" (1.60mm) |
Contact Material: | Brass Alloy |
Contact Finish: | Tin |
Contact Finish Thickness: | - |
Insulation: | Non-Insulated |
