H2072-01

H2072-01

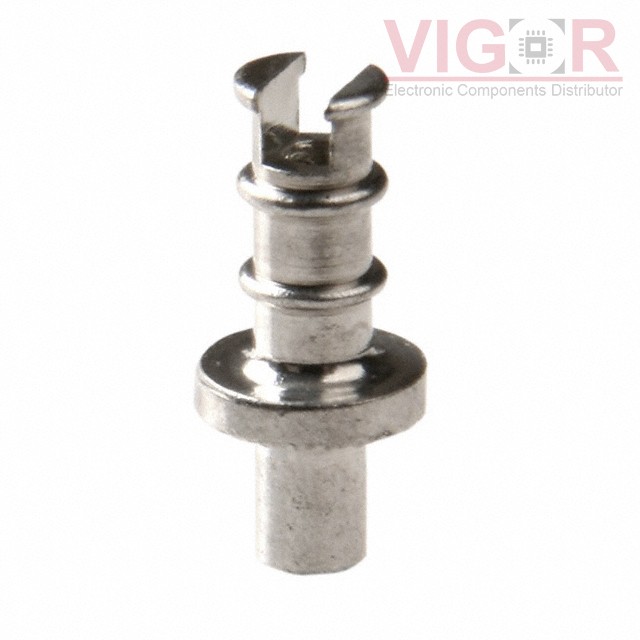

Image is for reference,
please contact us to get the real picture

Part No :

H2072-01

Manufacturer
Harwin
Description
TERM TURRET SLOTTED L=6.35MM TIN
Catalog
Terminals - Turret Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
H2072-01 PDF
Availability
427 pieces
Unit Price
$0.64000

Current price of H2072-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H2072-01 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Terminal Type:Single End, Fork
Number of Turrets:Triple
Length - Above Board:0.250" (6.35mm)
Length - Below Flange:0.094" ~ 0.099" (2.39mm ~ 2.51mm)
Length - Overall:0.344" (8.74mm)
Mounting Type:Through Hole
Termination:Swage
Flange Diameter:0.156" (3.96mm)
Diameter - Turret Head:0.128" (3.25mm)
Staking Side OD:0.080" ~ 0.085" (2.03mm ~ 2.16mm)
Staking Side ID:0.055" ~ 0.060" (1.40mm ~ 1.53mm)
Mounting Hole Diameter:0.085" ~ 0.089" (2.17mm ~ 2.26mm)
Board Thickness:0.063" (1.60mm)
Contact Material:Brass Alloy
Contact Finish:Tin
Contact Finish Thickness:-
Insulation:Non-Insulated
