H9004-01

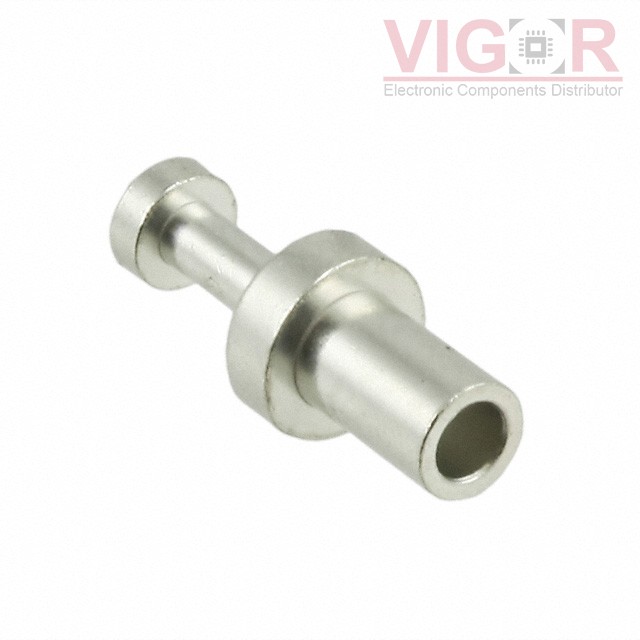

Image is for reference,
please contact us to get the real picture

Part No :: H9004-01

Manufacturer: Harwin

Description: TERM TURRET SINGLE L=4.88MM TIN

Catalog: Terminals - Turret Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: H9004-01 PDF

Availability: 6715 pieces

Unit Price: ~~$0.42000~~

Current price of H9004-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

H9004-01 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Terminal Type:	Single End
Number of Turrets:	Single
Length - Above Board:	0.192" (4.88mm)
Length - Below Flange:	0.092" ~ 0.097" (2.34mm ~ 2.46mm)
Length - Overall:	0.281" (7.14mm)
Mounting Type:	Through Hole
Termination:	Swage
Flange Diameter:	0.125" (3.18mm)
Diameter - Turret Head:	0.078" (1.98mm)
Staking Side OD:	-
Staking Side ID:	0.055" (1.40mm)
Mounting Hole Diameter:	0.079" ~ 0.082" (2.01mm ~ 2.08mm)
Board Thickness:	0.063" (1.60mm)
Contact Material:	Brass Alloy
Contact Finish:	Tin
Contact Finish Thickness:	-
Insulation:	Non-Insulated

Please confirm the specifications of the products when ordering.
