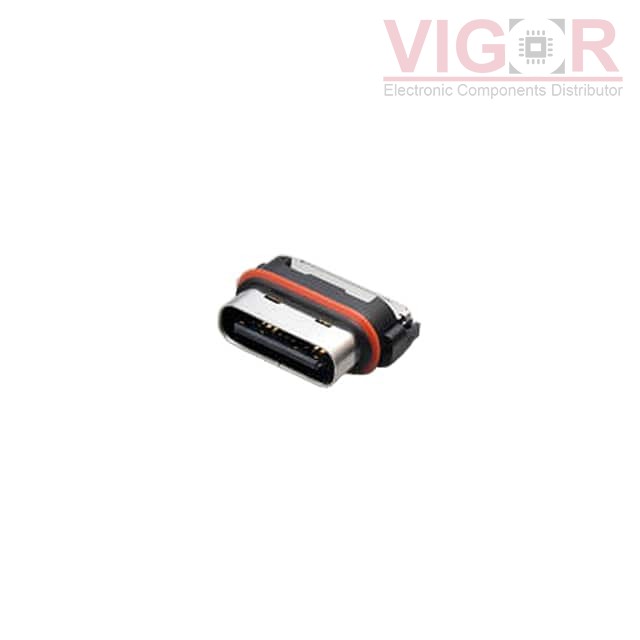

DX07W024JA1R1000

Image is for reference,
please contact us to get the real picture

Part No :: DX07W024JA1R1000

Manufacturer: JAE Electronics

Description: CONN RCPT USB3.1 TYPEC 24POS SMD

Catalog: USB, DVI, HDMI Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 07 - Jul 11 2025

DataSheet: DX07W024JA1R1000 PDF

Availability: 0 pieces

Unit Price: ~~$3.73000~~

Current price of DX07W024JA1R1000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DX07W024JA1R1000 Specifications

Type	Description
Series:	DX07
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	USB-C (USB TYPE-C)
Number of Contacts:	24
Gender:	Receptacle
Specifications:	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type:	Board Edge, Surface Mount, Right Angle
Mounting Feature:	Horizontal
Termination:	Solder
Features:	Board Guide
Ingress Protection:	IPX8 - Waterproof
Operating Temperature:	-30°C ~ 80°C
Number of Ports:	1
Current Rating (Amps):	0.25A, 1.25A, 5A, 6.25A
Voltage - Rated:	20VAC
Mating Cycles:	10000
Shielding:	Shielded

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

UJ2-BH-W2-TH

CONN RCPT USB2.0 TYPEB 4POS R/A

HOT

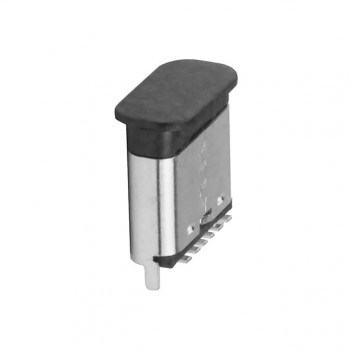

2171780001
