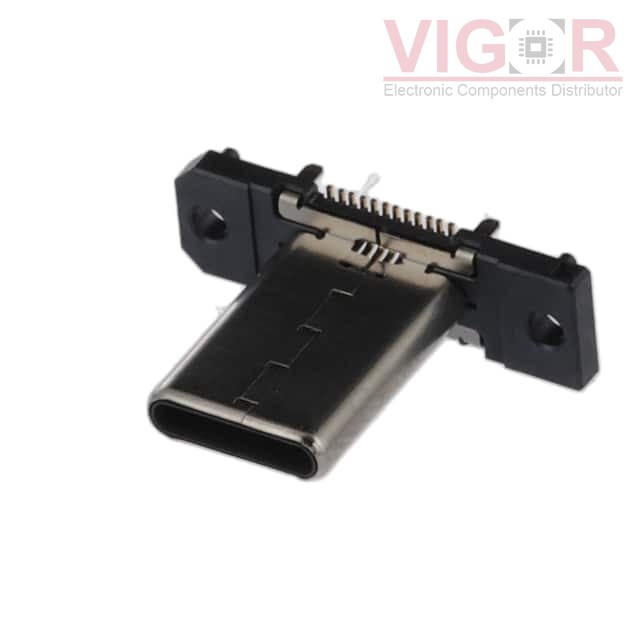

DX07VN24WA2C1568

DX07VN24WA2C1568

Image is for reference,
please contact us to get the real picture

Part No :

DX07VN24WA2C1568

Manufacturer
JAE Electronics
Description
CONN PLUG USB3.1 TYPEC 24POS SMD
Catalog
USB, DVI, HDMI Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
DX07VN24WA2C1568 PDF
Availability
8654 pieces
Unit Price
$2.40000

Current price of DX07VN24WA2C1568 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DX07VN24WA2C1568 Specifications
Type Description
Series:DX07
Package:Tray
Part Status:Active
Connector Type:USB-C (USB TYPE-C)
Number of Contacts:24
Gender:Plug
Specifications:USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type:Surface Mount
Mounting Feature:Flange, Vertical
Termination:Solder
Features:Board Guide, Pick and Place Cap
Ingress Protection:-
Operating Temperature:-30°C ~ 80°C
Number of Ports:1
Current Rating (Amps):5A
Voltage - Rated:20VAC
Mating Cycles:10000
Shielding:Shielded
