ECS-160-20-23A-TR

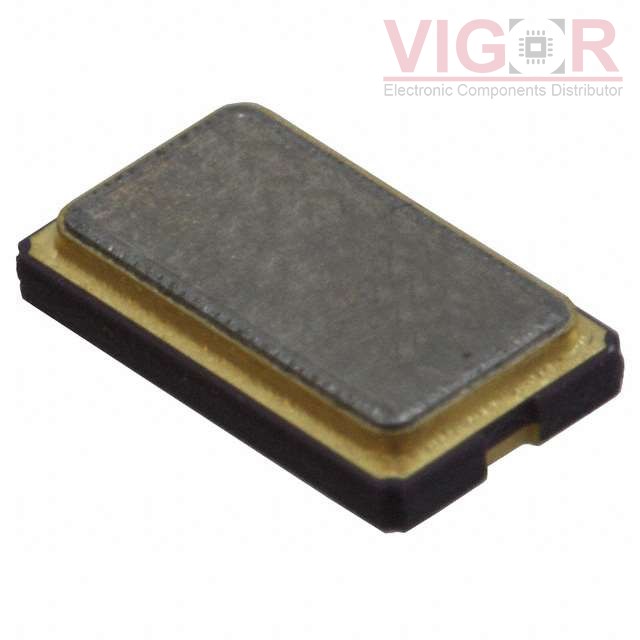

Image is for reference,
please contact us to get the real picture

Part No :: ECS-160-20-23A-TR

Manufacturer: ECS Inc. International

Description: CRYSTAL 16.0000MHZ 20PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: ECS-160-20-23A-TR PDF

Availability: 6115 pieces

Unit Price: ~~$2.36000~~

Current price of ECS-160-20-23A-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECS-160-20-23A-TR Specifications

Type	Description
Series:	ECX-64A
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	16 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	20pF
ESR (Equivalent Series Resistance):	60 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-10°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD, No Lead
Size / Dimension:	0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max):	0.043" (1.10mm)

Please confirm the specifications of the products when ordering.
