CSM1Z-A5B2C5-120-7.3728D18

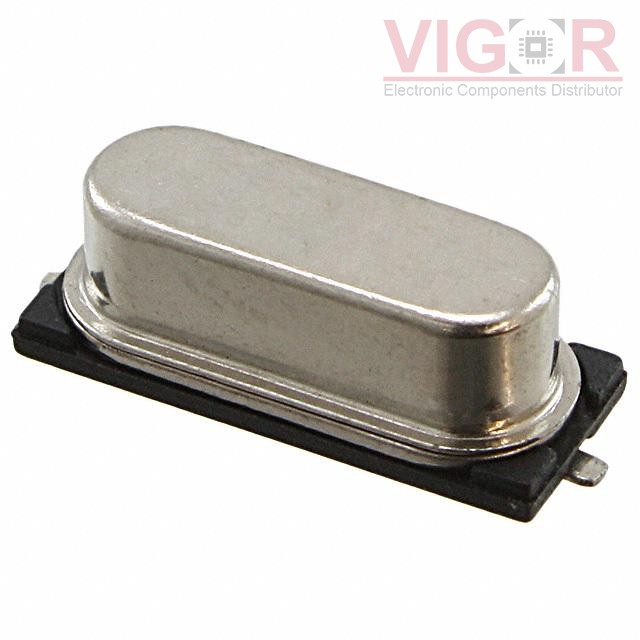

Image is for reference,
please contact us to get the real picture

Part No :: CSM1Z-A5B2C5-120-7.3728D18

Manufacturer: Cardinal Components

Description: CRYSTAL 7.3728MHZ 18PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: CSM1Z-A5B2C5-120-7.3728D18 PDF

Availability: 0 pieces

Unit Price: ~~$0.32832~~

Current price of CSM1Z-A5B2C5-120-7.3728D18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSM1Z-A5B2C5-120-7.3728D18 Specifications

Type	Description
Series:	CSM1
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	7.3728 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±20ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	120 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-20°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49S
Size / Dimension:	0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max):	0.169" (4.30mm)
