C7S-22.1184-10-1520-M

C7S-22.1184-10-1520-M

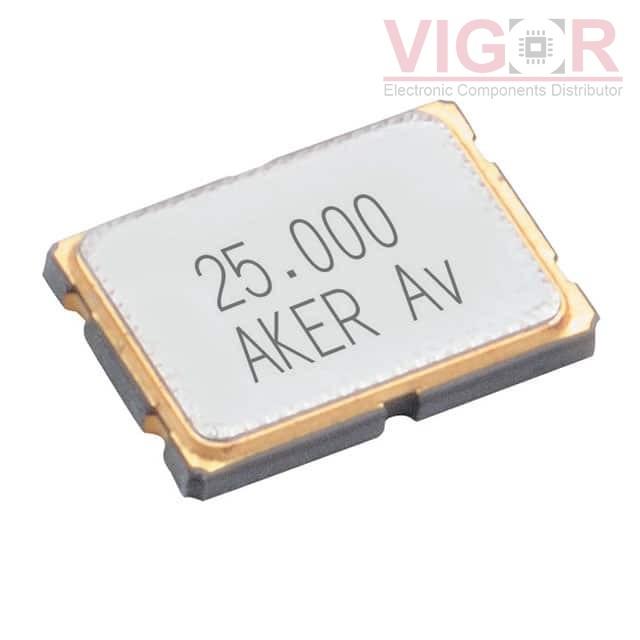

Image is for reference,
please contact us to get the real picture

Part No :

C7S-22.1184-10-1520-M

Manufacturer
Aker Technology USA
Description
CRYSTAL 22.1184MHZ 10PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
C7S-22.1184-10-1520-M PDF
Availability
0 pieces
Unit Price
$0.50000

Current price of C7S-22.1184-10-1520-M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C7S-22.1184-10-1520-M Specifications
Type Description
Series:C7S
Package:Tape & Reel (TR)
Part Status:Active
Type:MHz Crystal
Frequency:22.1184 MHz
Frequency Stability:±20ppm
Frequency Tolerance:±15ppm
Load Capacitance:10pF
ESR (Equivalent Series Resistance):30 Ohms
Operating Mode:Fundamental
Operating Temperature:-20°C ~ 70°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.043" (1.10mm)
