CSM1Z-A5B2C3-120-6.144D18

CSM1Z-A5B2C3-120-6.144D18

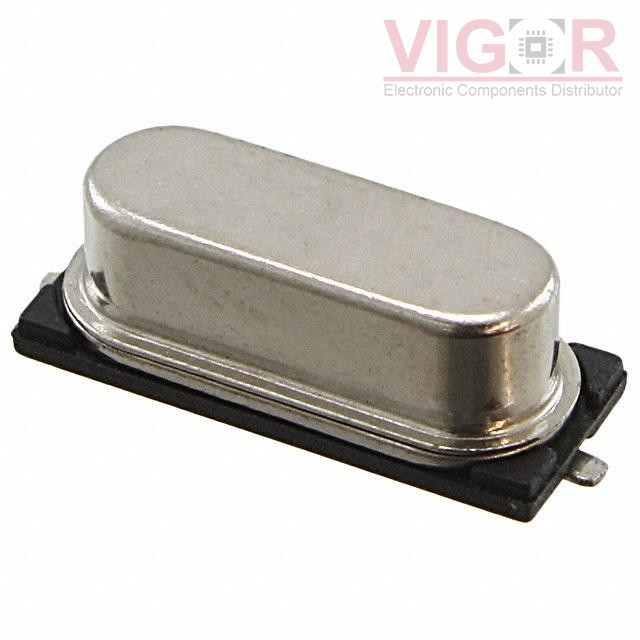

Image is for reference,
please contact us to get the real picture

Part No :

CSM1Z-A5B2C3-120-6.144D18

Manufacturer
Cardinal Components
Description
CRYSTAL 6.1440MHZ 18PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
CSM1Z-A5B2C3-120-6.144D18 PDF
Availability
947 pieces
Unit Price
$0.57000

Current price of CSM1Z-A5B2C3-120-6.144D18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSM1Z-A5B2C3-120-6.144D18 Specifications
Type Description
Series:CSM1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:MHz Crystal
Frequency:6.144 MHz
Frequency Stability:±50ppm
Frequency Tolerance:±30ppm
Load Capacitance:18pF
ESR (Equivalent Series Resistance):120 Ohms
Operating Mode:Fundamental
Operating Temperature:-20°C ~ 70°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:HC-49S
Size / Dimension:0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max):0.169" (4.30mm)
