CX2520DB12000D0GPSC1

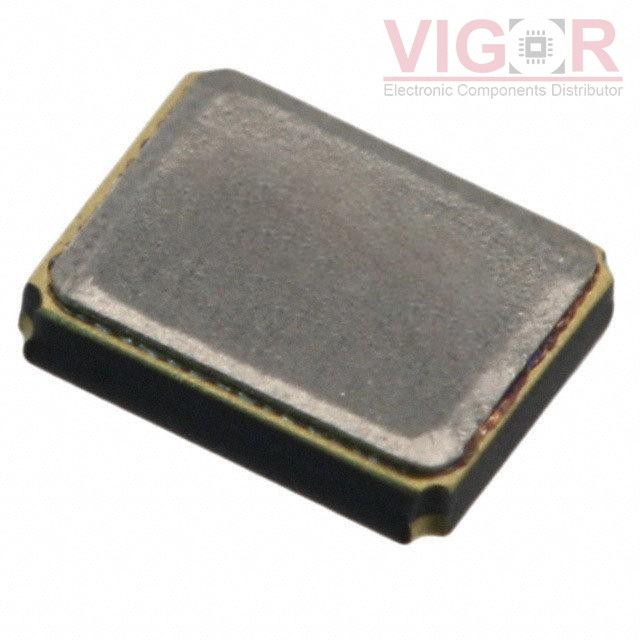

Image is for reference,
please contact us to get the real picture

Part No :: CX2520DB12000D0GPSC1

Manufacturer: KYOCERA Corporation

Description: CRYSTAL 12.0000MHZ 8PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: CX2520DB12000D0GPSC1 PDF

Availability: 0 pieces

Unit Price: ~~$0.36250~~

Current price of CX2520DB12000D0GPSC1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CX2520DB12000D0GPSC1 Specifications

Type	Description
Series:	CX2520DB, Kyocera
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	MHz Crystal
Frequency:	12 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±15ppm
Load Capacitance:	8pF
ESR (Equivalent Series Resistance):	150 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SMD, No Lead
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):	0.022" (0.55mm)
