CSM1Z-A5B2C5-40-18.432D18

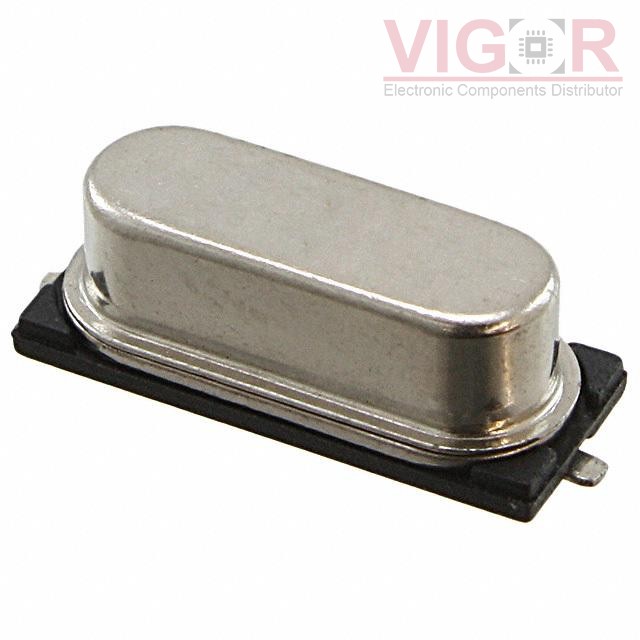

Image is for reference,
please contact us to get the real picture

Part No :

CSM1Z-A5B2C5-40-18.432D18

Manufacturer
Cardinal Components
Description
CRYSTAL 18.4320MHZ 18PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
CSM1Z-A5B2C5-40-18.432D18 PDF
Availability
0 pieces
Unit Price
$0.32832

Current price of CSM1Z-A5B2C5-40-18.432D18 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:CSM1
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:MHz Crystal
Frequency:18.432 MHz
Frequency Stability:±50ppm
Frequency Tolerance:±20ppm
Load Capacitance:18pF
ESR (Equivalent Series Resistance):40 Ohms
Operating Mode:Fundamental
Operating Temperature:-20°C ~ 70°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:HC-49S
Size / Dimension:0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max):0.169" (4.30mm)
