NX2520SA-16MHZ-STD-CSW-5

NX2520SA-16MHZ-STD-CSW-5

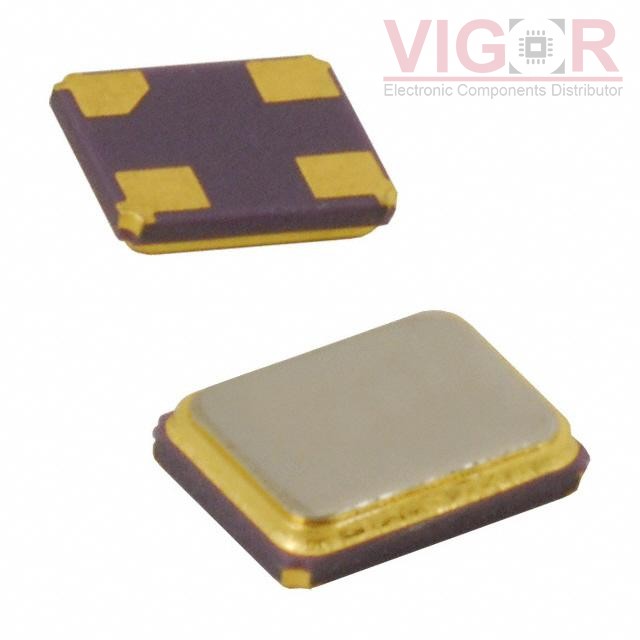

Image is for reference,
please contact us to get the real picture

Part No :

NX2520SA-16MHZ-STD-CSW-5

Manufacturer
NDK
Description
CRYSTAL 16.0000MHZ 8PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
NX2520SA-16MHZ-STD-CSW-5 PDF
Availability
4056 pieces
Unit Price
$1.04000

Current price of NX2520SA-16MHZ-STD-CSW-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NX2520SA-16MHZ-STD-CSW-5 Specifications
Type Description
Series:NX2520SA
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:MHz Crystal
Frequency:16 MHz
Frequency Stability:±25ppm
Frequency Tolerance:±15ppm
Load Capacitance:8pF
ESR (Equivalent Series Resistance):80 Ohms
Operating Mode:Fundamental
Operating Temperature:-40°C ~ 85°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.022" (0.55mm)
