ECS-120-S-28AX-TR

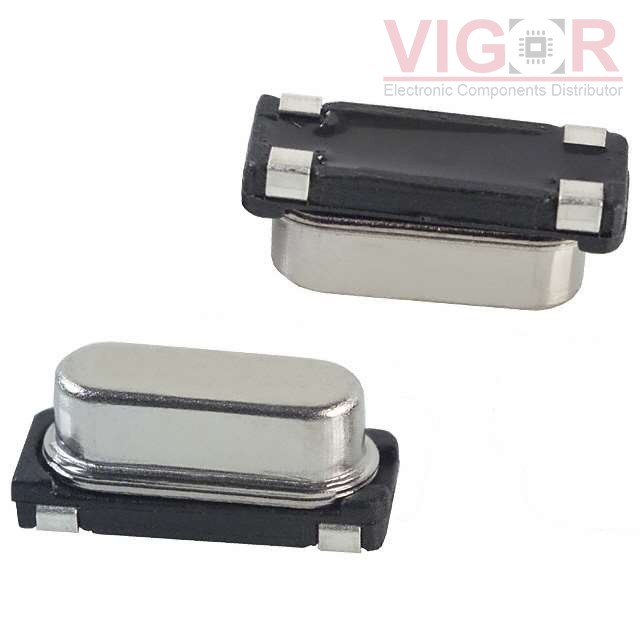

Image is for reference,
please contact us to get the real picture

Part No :: ECS-120-S-28AX-TR

Manufacturer: ECS Inc. International

Description: CRYSTAL 12.0000MHZ SERIES SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: ECS-120-S-28AX-TR PDF

Availability: 518 pieces

Unit Price: ~~$1.17000~~

Current price of ECS-120-S-28AX-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECS-120-S-28AX-TR Specifications

Type	Description
Series:	CSM-4AX
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	MHz Crystal
Frequency:	12 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±30ppm
Load Capacitance:	Series
ESR (Equivalent Series Resistance):	60 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-10°C ~ 70°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	HC-49/US
Size / Dimension:	0.492" L x 0.191" W (12.50mm x 4.85mm)
Height - Seated (Max):	0.197" (5.00mm)

Please confirm the specifications of the products when ordering.
