MA-506 14.7456M50X-C: PURE SN

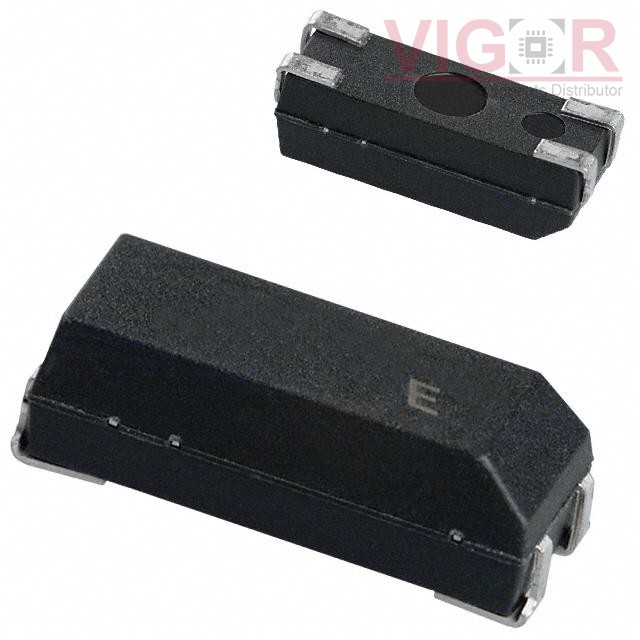

Image is for reference,
please contact us to get the real picture

Part No :: MA-506 14.7456M50X-C: PURE SN

Manufacturer: Epson

Description: CRYSTAL 14.7456MHZ 18PF SMD

Catalog: Crystals

Shipped from: HK warehouse

Expected Shipping Date: Jul 03 - Jul 07 2025

DataSheet: MA-506 14.7456M50X-C: PURE SN PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of MA-506 14.7456M50X-C: PURE SN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA-506 14.7456M50X-C: PURE SN Specifications

Type	Description
Series:	MA-506
Package:	Bulk
Part Status:	Obsolete
Type:	MHz Crystal
Frequency:	14.7456 MHz
Frequency Stability:	±50ppm
Frequency Tolerance:	±50ppm
Load Capacitance:	18pF
ESR (Equivalent Series Resistance):	50 Ohms
Operating Mode:	Fundamental
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	4-SOJ, 3.30mm pitch
Size / Dimension:	0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max):	0.181" (4.60mm)
