MA-506 20.0000M-A3:ROHS

MA-506 20.0000M-A3:ROHS

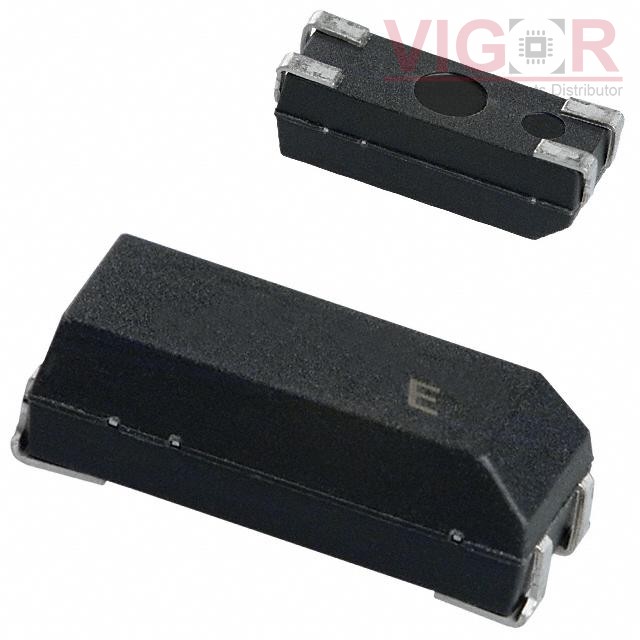

Image is for reference,
please contact us to get the real picture

Part No :

MA-506 20.0000M-A3:ROHS

Manufacturer
Epson
Description
CRYSTAL 20.0000MHZ 12.5PF SMD
Catalog
Crystals
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
MA-506 20.0000M-A3:ROHS PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of MA-506 20.0000M-A3:ROHS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MA-506 20.0000M-A3:ROHS Specifications
Type Description
Series:MA-506
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:MHz Crystal
Frequency:20 MHz
Frequency Stability:±30ppm
Frequency Tolerance:±50ppm
Load Capacitance:12.5pF
ESR (Equivalent Series Resistance):40 Ohms
Operating Mode:Fundamental
Operating Temperature:-20°C ~ 70°C
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SOJ, 3.30mm pitch
Size / Dimension:0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max):0.181" (4.60mm)
