520L05HT16M3680

520L05HT16M3680

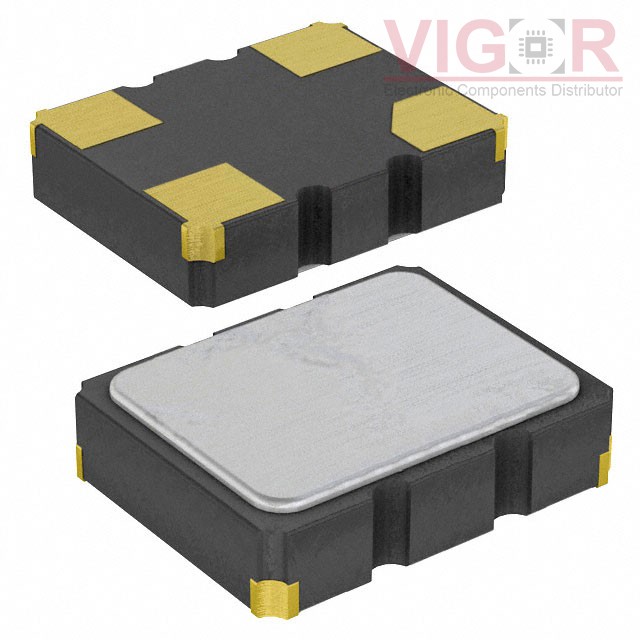

Image is for reference,
please contact us to get the real picture

Part No :

520L05HT16M3680

Manufacturer
CTS Corporation
Description
XTAL OSC TCXO 16.3680MHZ SNWV
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
520L05HT16M3680 PDF
Availability
0 pieces
Unit Price
$1.93205

Current price of 520L05HT16M3680 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

520L05HT16M3680 Specifications
Type Description
Series:520
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:Crystal
Type:TCXO
Frequency:16.368 MHz
Function:-
Output:Clipped Sine Wave
Voltage - Supply:3.3V
Frequency Stability:±500ppb
Absolute Pull Range (APR):-
Operating Temperature:-10°C ~ 60°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):2mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.031" (0.80mm)
