SG-8002CA 3.6860M-PCBB

SG-8002CA 3.6860M-PCBB

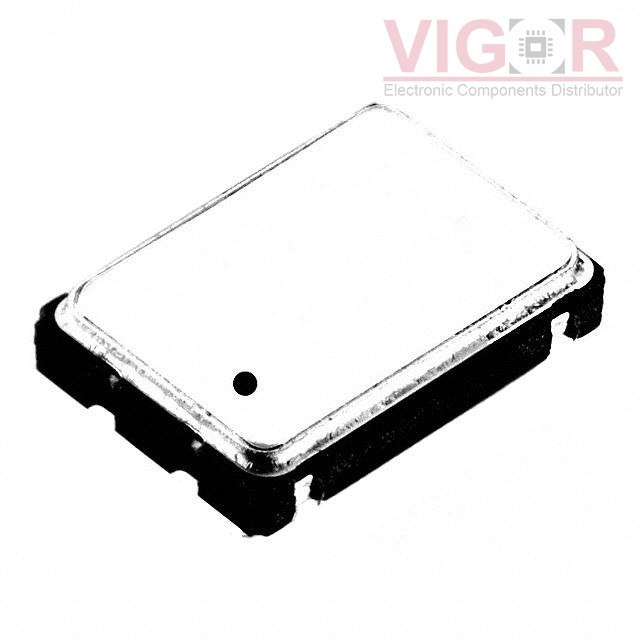

Image is for reference,
please contact us to get the real picture

Part No :

SG-8002CA 3.6860M-PCBB

Manufacturer
Epson
Description
XTAL OSC XO 3.6860MHZ CMOS SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
SG-8002CA 3.6860M-PCBB PDF
Availability
0 pieces
Unit Price
$3.12290

Current price of SG-8002CA 3.6860M-PCBB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-8002CA 3.6860M-PCBB Specifications
Type Description
Series:SG-8002CA
Package:Bulk
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:3.686 MHz
Function:Enable/Disable
Output:CMOS
Voltage - Supply:3.3V
Frequency Stability:±100ppm
Absolute Pull Range (APR):-
Operating Temperature:-20°C ~ 70°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):28mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.059" (1.50mm)
