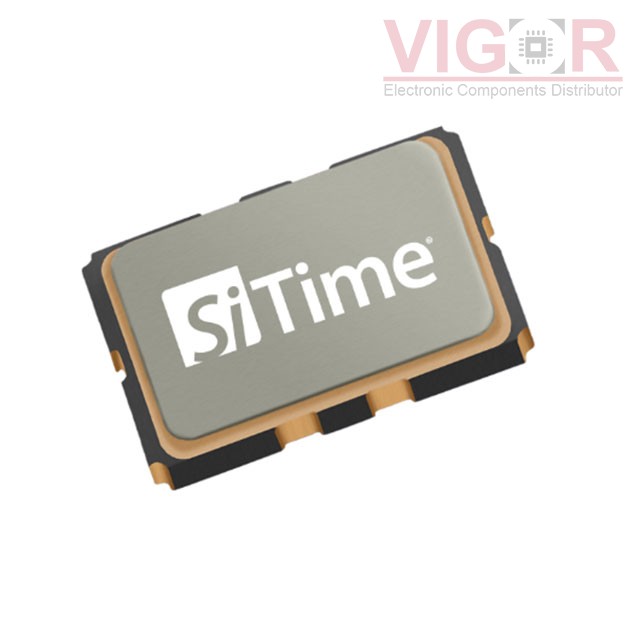

SiT5156AICFA-28E0-24.553500F

Image is for reference,
please contact us to get the real picture

Part No :: SiT5156AICFA-28E0-24.553500F

Manufacturer: SiTime

Description: XTAL OSC TCXO 24.5535MHZ

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 14 - Jul 18 2025

DataSheet: SiT5156AICFA-28E0-24.553500F PDF

Availability: 0 pieces

Unit Price: ~~$34.90000~~

Current price of SiT5156AICFA-28E0-24.553500F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SiT5156AICFA-28E0-24.553500F Specifications

Type	Description
Series:	SiT5156, Elite Platform™
Package:	Strip
Part Status:	Active
Base Resonator:	MEMS
Type:	TCXO
Frequency:	24.5535 MHz
Function:	Enable/Disable
Output:	Clipped Sine Wave
Voltage - Supply:	2.8V
Frequency Stability:	±1ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	-
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	10-SMD, No Lead
Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):	0.042" (1.06mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

SiT3372AI-2E3-28NU30.720000T

XTAL OSC VCXO 30.7200MHZ LVDS

HOT

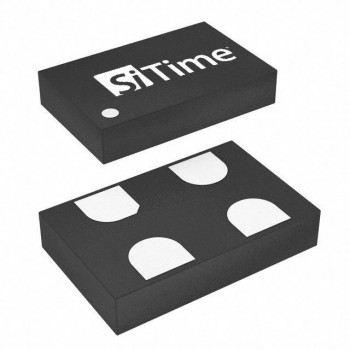

SIT1602BC-33-XXN-74.175824X

MEMS OSC XO 74.175824MHZ H/LV-CM

HOT

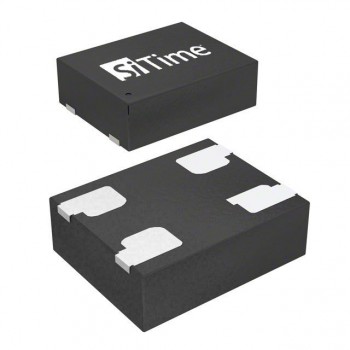

SIT8209AI-G2-28E-166.600000T
