SG-9101CA 10.0000M-C20PHAAA5

SG-9101CA 10.0000M-C20PHAAA5

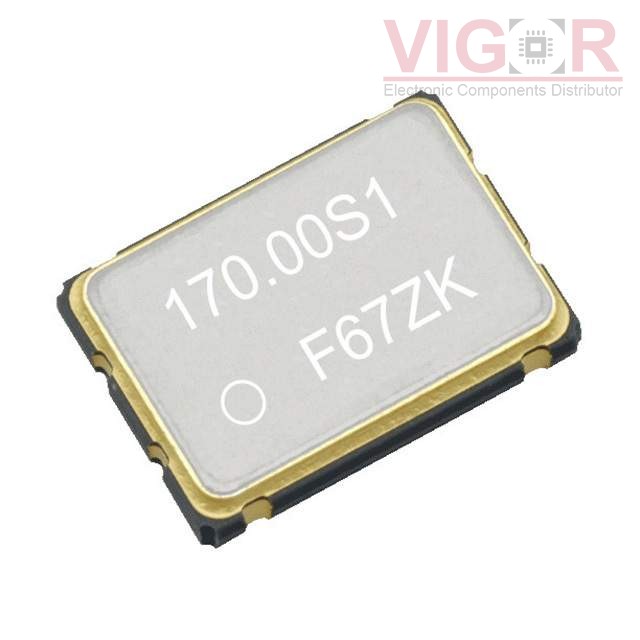

Image is for reference,
please contact us to get the real picture

Part No :

SG-9101CA 10.0000M-C20PHAAA5

Manufacturer
Epson
Description
XTAL OSC XO 10.0000MHZ CMOS SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
SG-9101CA 10.0000M-C20PHAAA5 PDF
Availability
0 pieces
Unit Price
$3.98160

Current price of SG-9101CA 10.0000M-C20PHAAA5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-9101CA 10.0000M-C20PHAAA5 Specifications
Type Description
Series:SG-9101
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:10 MHz
Function:Enable/Disable
Output:CMOS
Voltage - Supply:1.62V ~ 3.63V
Frequency Stability:-
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 105°C
Spread Spectrum Bandwidth:±2.00%, Center Spread
Current - Supply (Max):8.3mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.055" (1.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT SiT3372AC-2E9-28NH216.000000T

SiT3372AC-2E9-28NH216.000000T

XTAL OSC VCXO 216.0000MHZ LVDS
HOT SiT3372AC-2E2-28NC77.760000X

SiT3372AC-2E2-28NC77.760000X

XTAL OSC VCXO 77.7600MHZ LVDS

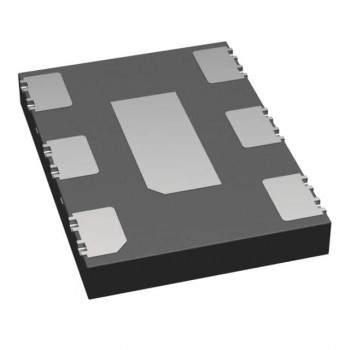

HOT SiT9365AI-1E1-28E212.500000T
