SG-615P 14.31818MC3:PURE SN

SG-615P 14.31818MC3:PURE SN

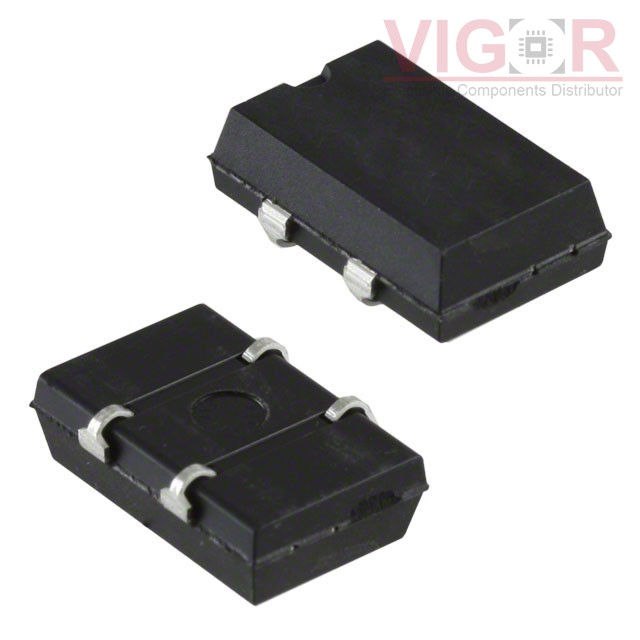

Image is for reference,
please contact us to get the real picture

Part No :

SG-615P 14.31818MC3:PURE SN

Manufacturer
Epson
Description
XTAL OSC XO 14.31818MHZ CMOS TTL
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
SG-615P 14.31818MC3:PURE SN PDF
Availability
0 pieces
Unit Price
$1.92500

Current price of SG-615P 14.31818MC3:PURE SN is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-615P 14.31818MC3:PURE SN Specifications
Type Description
Series:SG-615
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:14.31818 MHz
Function:Enable/Disable
Output:CMOS, TTL
Voltage - Supply:5V
Frequency Stability:±100ppm
Absolute Pull Range (APR):-
Operating Temperature:-20°C ~ 70°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):23mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SOJ, 5.08mm pitch
Size / Dimension:0.551" L x 0.341" W (14.00mm x 8.65mm)
Height - Seated (Max):0.185" (4.70mm)
