SIT9005ACL13H28NP20.000000D

SIT9005ACL13H28NP20.000000D

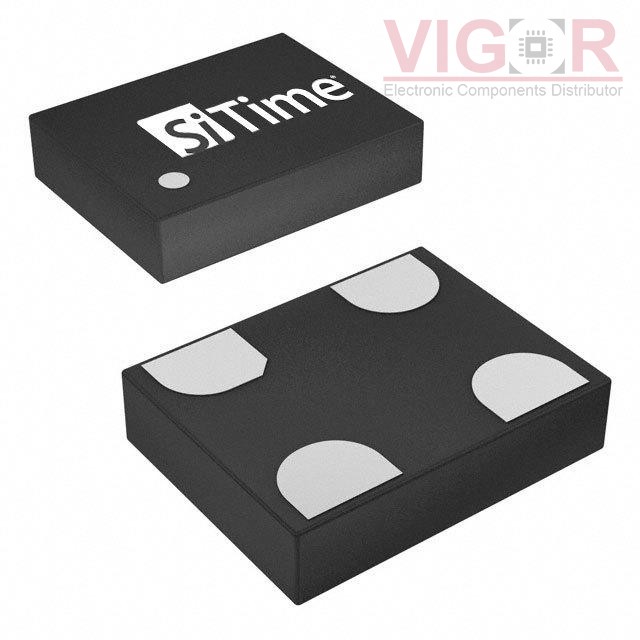

Image is for reference,
please contact us to get the real picture

Part No :

SIT9005ACL13H28NP20.000000D

Manufacturer
SiTime
Description
MEMS OSC XO 20.0000MHZ SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
SIT9005ACL13H28NP20.000000D PDF
Availability
0 pieces
Unit Price
$3.54000

Current price of SIT9005ACL13H28NP20.000000D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SIT9005ACL13H28NP20.000000D Specifications
Type Description
Series:SiT9005
Package:Strip
Part Status:Active
Base Resonator:MEMS
Type:XO (Standard)
Frequency:20 MHz
Function:-
Output:LVCMOS
Voltage - Supply:2.8V
Frequency Stability:±50ppm
Absolute Pull Range (APR):-
Operating Temperature:-20°C ~ 70°C
Spread Spectrum Bandwidth:±2.06%, Center Spread
Current - Supply (Max):6.5mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.031" (0.80mm)
