SG7050EBN 156.250000M-CJGA0

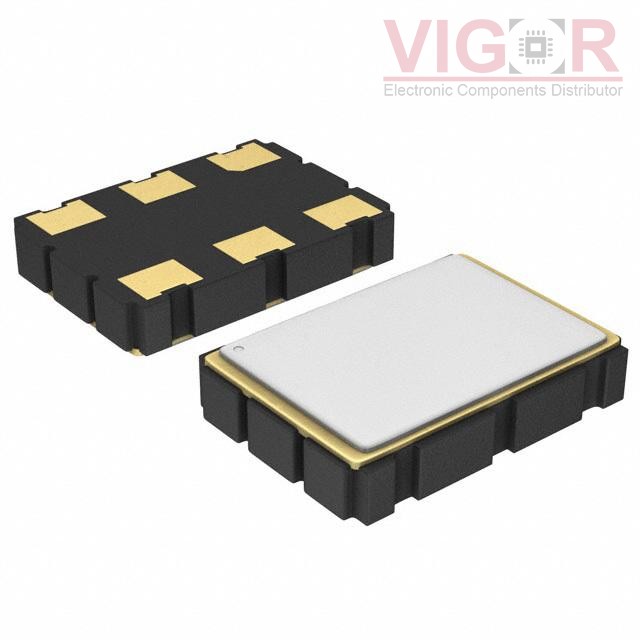

Image is for reference,
please contact us to get the real picture

Part No :: SG7050EBN 156.250000M-CJGA0

Manufacturer: Epson

Description: XTAL OSC XO 156.2500MHZ LVPECL

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: SG7050EBN 156.250000M-CJGA0 PDF

Availability: 0 pieces

Unit Price: ~~$4.08177~~

Current price of SG7050EBN 156.250000M-CJGA0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG7050EBN 156.250000M-CJGA0 Specifications

Type	Description
Series:	SG7050EBN
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	156.25 MHz
Function:	Enable/Disable
Output:	LVPECL
Voltage - Supply:	3.3V
Frequency Stability:	±50ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	75mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	6-SMD, No Lead
Size / Dimension:	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):	0.059" (1.50mm)
