AX3DCF4-156.2500

AX3DCF4-156.2500

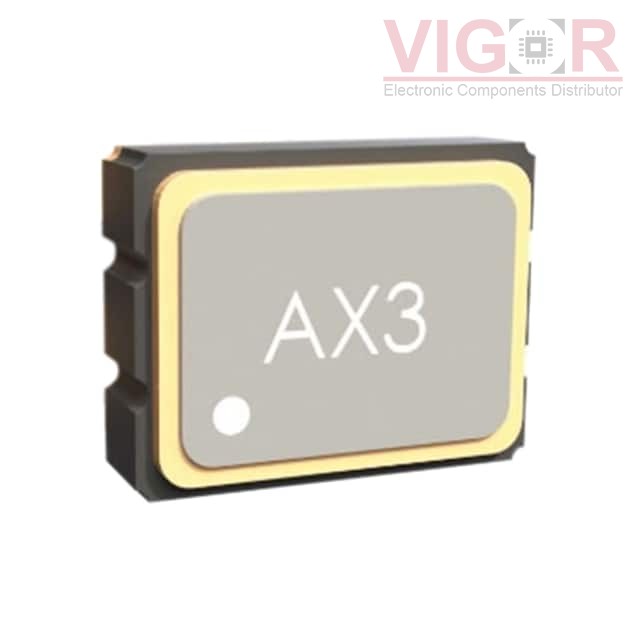

Image is for reference,
please contact us to get the real picture

Part No :

AX3DCF4-156.2500

Manufacturer
Abracon
Description
XTAL OSC XO 156.25MHZ 1.8V LVDS
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
AX3DCF4-156.2500 PDF
Availability
0 pieces
Unit Price
$2.76296

Current price of AX3DCF4-156.2500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX3DCF4-156.2500 Specifications
Type Description
Series:ClearClock™ AX3
Package:Strip
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:156.25 MHz
Function:Enable/Disable
Output:LVDS
Voltage - Supply:1.8V
Frequency Stability:±25ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):27mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:6-SMD, No Lead
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.043" (1.10mm)
