536L100X2GT5

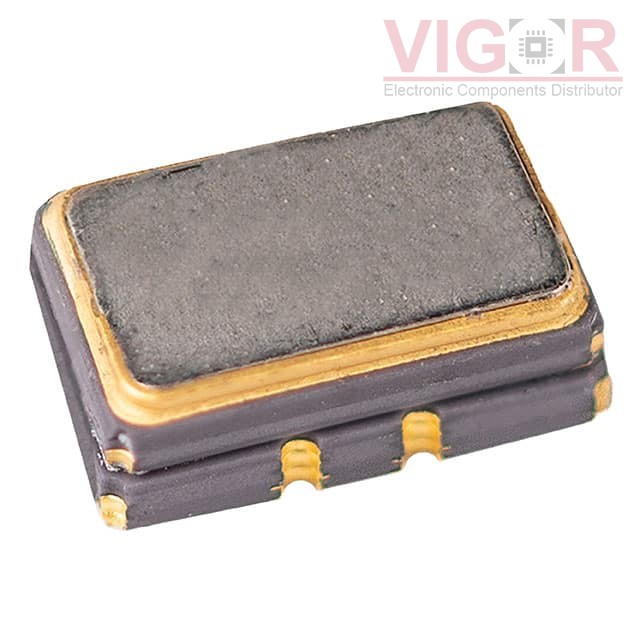

Image is for reference,
please contact us to get the real picture

Part No :: 536L100X2GT5

Manufacturer: CTS Corporation

Description: XTAL OSC TCXO 10MHZ HCMOS

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Aug 24 - Aug 28 2025

DataSheet: 536L100X2GT5 PDF

Availability: 0 pieces

Unit Price: ~~$13.83200~~

Current price of 536L100X2GT5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

536L100X2GT5 Specifications

Type	Description
Series:	536
Package:	Tape & Reel (TR)
Part Status:	Active
Base Resonator:	Crystal
Type:	TCXO
Frequency:	10 MHz
Function:	-
Output:	HCMOS
Voltage - Supply:	3.3V
Frequency Stability:	±280ppb
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 105°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	10mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	10-SMD, No Lead
Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):	0.079" (2.00mm)

Please confirm the specifications of the products when ordering.
