CWX815-4.0M

CWX815-4.0M

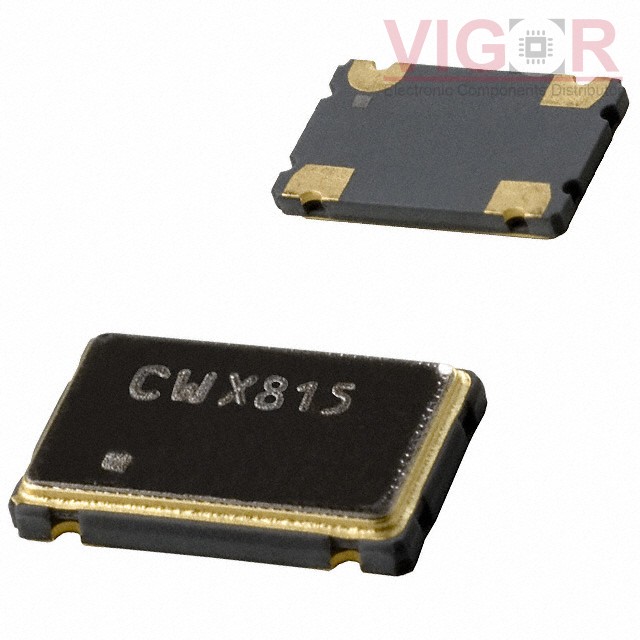

Image is for reference,
please contact us to get the real picture

Part No :

CWX815-4.0M

Manufacturer
Connor Winfield
Description
XTAL OSC XO 4.0000MHZ HCMOS SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 10 - Aug 14 2025
DataSheet
CWX815-4.0M PDF
Availability
0 pieces
Unit Price
$1.72550

Current price of CWX815-4.0M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CWX815-4.0M Specifications
Type Description
Series:CWX815
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:4 MHz
Function:Enable/Disable
Output:HCMOS
Voltage - Supply:5V
Frequency Stability:±25ppm
Absolute Pull Range (APR):-
Operating Temperature:-20°C ~ 70°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):45mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.051" (1.30mm)
