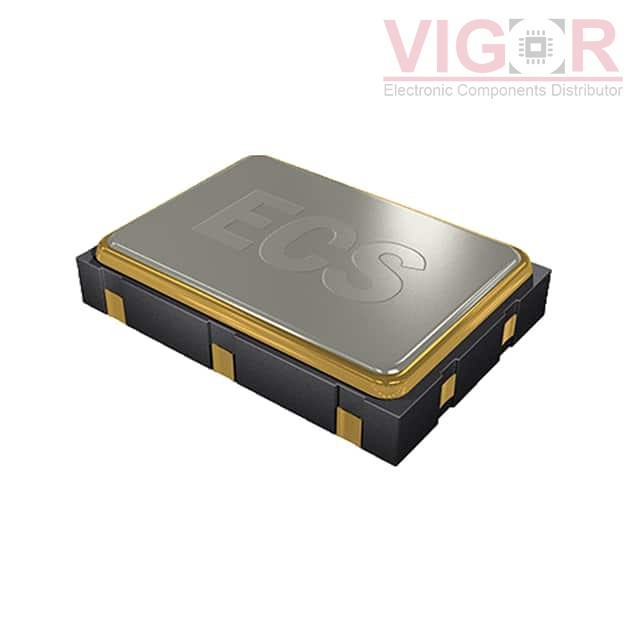

ECX-L23BN-20.000

ECX-L23BN-20.000

Image is for reference,
please contact us to get the real picture

Part No :

ECX-L23BN-20.000

Manufacturer
ECS Inc. International
Description
XTAL OSC XO 20.0000MHZ LVDS SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
ECX-L23BN-20.000 PDF
Availability
0 pieces
Unit Price
$5.58600

Current price of ECX-L23BN-20.000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECX-L23BN-20.000 Specifications
Type Description
Series:ECSpressCON™ ECX-L
Package:Bulk
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency:20 MHz
Function:Enable/Disable
Output:LVDS
Voltage - Supply:2.5V
Frequency Stability:±50ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):18mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:6-SMD, No Lead
Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max):0.039" (1.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 520N25HA16M3690

520N25HA16M3690

XTAL OSC VCTCXO 16.3690MHZ SNWV
HOT SiT3372AC-2E2-33NG155.520000Y

SiT3372AC-2E2-33NG155.520000Y

XTAL OSC VCXO 155.5200MHZ LVDS

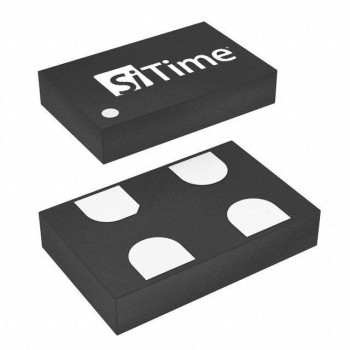

HOT SIT1602BI-33-30E-19.200000X
