AX5DBF1-114.2850C

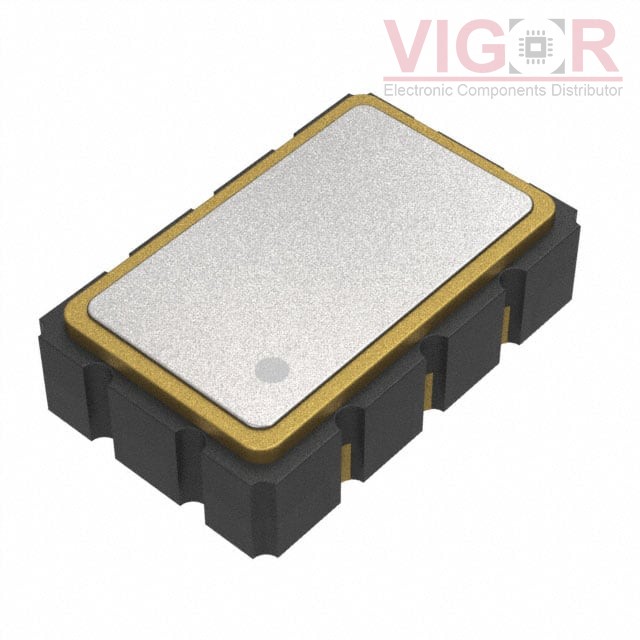

Image is for reference,
please contact us to get the real picture

Part No :: AX5DBF1-114.2850C

Manufacturer: Abracon

Description: OSC XO 114.285MHZ 2.5V LVDS

Catalog: Oscillators

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: AX5DBF1-114.2850C PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AX5DBF1-114.2850C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX5DBF1-114.2850C Specifications

Type	Description
Series:	ClearClock™ AX5
Package:	Strip
Part Status:	Discontinued at Digi-Key
Base Resonator:	Crystal
Type:	XO (Standard)
Frequency:	114.285 MHz
Function:	Enable/Disable
Output:	LVDS
Voltage - Supply:	2.5V
Frequency Stability:	±20ppm
Absolute Pull Range (APR):	-
Operating Temperature:	-40°C ~ 85°C
Spread Spectrum Bandwidth:	-
Current - Supply (Max):	80mA
Ratings:	-
Mounting Type:	Surface Mount
Package / Case:	8-SMD, No Lead
Size / Dimension:	0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max):	0.059" (1.50mm)

Please confirm the specifications of the products when ordering.
