AX7DBF1-690.5692C

AX7DBF1-690.5692C

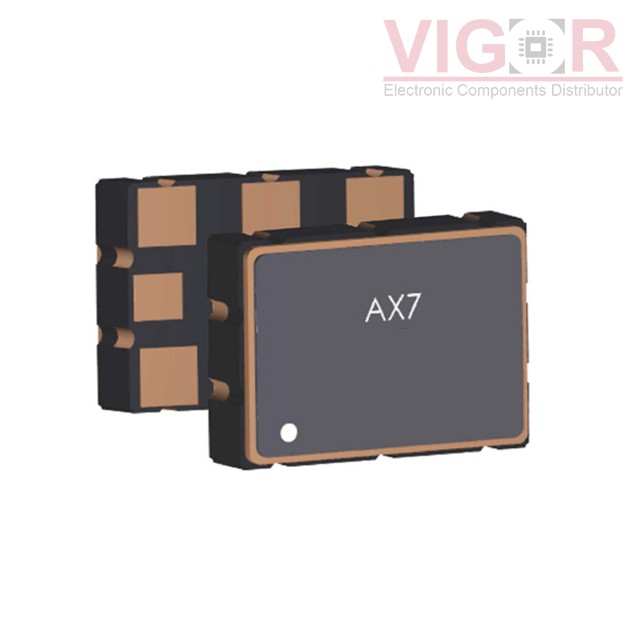

Image is for reference,
please contact us to get the real picture

Part No :

AX7DBF1-690.5692C

Manufacturer
Abracon
Description
XTAL OSC XO 690.5692MHZ LVDS SMD
Catalog
Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
AX7DBF1-690.5692C PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AX7DBF1-690.5692C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX7DBF1-690.5692C Specifications
Type Description
Series:ClearClock™ AX7
Package:Strip
Part Status:Discontinued at Digi-Key
Base Resonator:Crystal
Type:XO (Standard)
Frequency:690.5692 MHz
Function:Enable/Disable
Output:LVDS
Voltage - Supply:2.5V
Frequency Stability:±25ppm
Absolute Pull Range (APR):-
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):70mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:8-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.075" (1.90mm)
