SG-8504CA 100.0M 0010A-APRLZ3

SG-8504CA 100.0M 0010A-APRLZ3

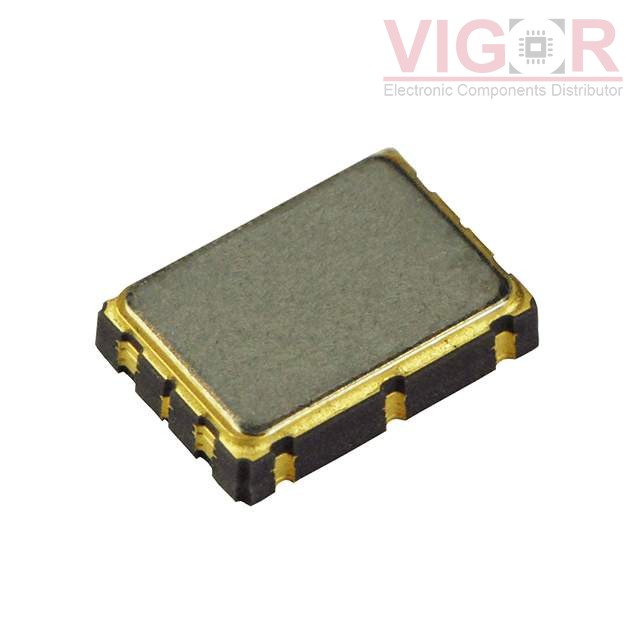

Image is for reference,
please contact us to get the real picture

Part No :

SG-8504CA 100.0M 0010A-APRLZ3

Manufacturer
Epson
Description
XTAL OSC XO 2.5V-3.3V 8SMD
Catalog
Pin Configurable/Selectable Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
SG-8504CA 100.0M 0010A-APRLZ3 PDF
Availability
0 pieces
Unit Price
$15.52244

Current price of SG-8504CA 100.0M 0010A-APRLZ3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-8504CA 100.0M 0010A-APRLZ3 Specifications
Type Description
Series:SG-8504CA
Package:Tape & Reel (TR)
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Frequency - Output 1:100MHz, 133.33MHz, 166.66MHz, 200MHz
Frequency - Output 2:-
Frequency - Output 3:-
Frequency - Output 4:-
Function:Enable/Disable
Output:LVPECL
Voltage - Supply:2.5V ~ 3.3V
Frequency Stability:±50ppm
Operating Temperature:-40°C ~ 85°C
Current - Supply (Max):90mA
Ratings:-
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height:0.059" (1.50mm)
Package / Case:8-SMD, No Lead
