SG-9101CA-D15PHDAC

SG-9101CA-D15PHDAC

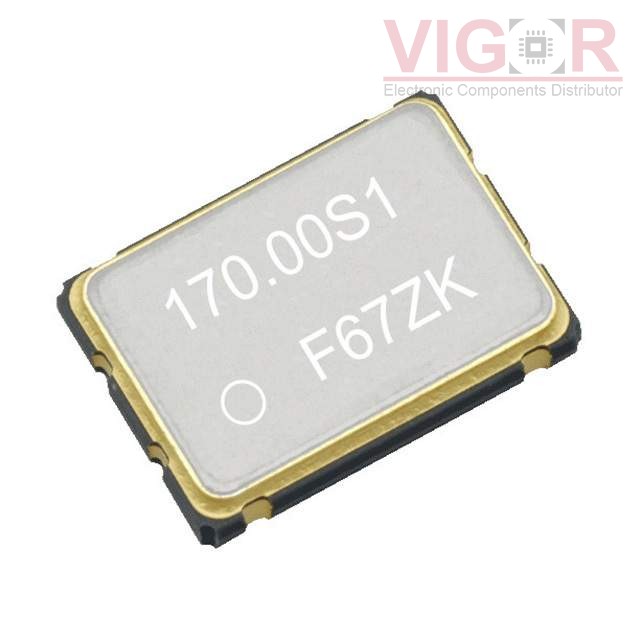

Image is for reference,
please contact us to get the real picture

Part No :

SG-9101CA-D15PHDAC

Manufacturer
Epson
Description
XTAL OSC PROG XO CMOS DWN SPRD
Catalog
Programmable Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SG-9101CA-D15PHDAC PDF
Availability
112 pieces
Unit Price
$4.98000

Current price of SG-9101CA-D15PHDAC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-9101CA-D15PHDAC Specifications
Type Description
Series:SG-9101
Package:Tube
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Programmable Type:Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range:670 kHz ~ 20.0 MHz
Function:Enable/Disable
Output:CMOS
Voltage - Supply:1.62V ~ 3.63V
Frequency Stability:-
Frequency Stability (Total):-
Operating Temperature:-40°C ~ 105°C
Spread Spectrum Bandwidth:-1.50%, Down Spread
Current - Supply (Max):-
Ratings:-
Mounting Type:Surface Mount
Package / Case:4-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.055" (1.40mm)
