SG-8504CA-QRLZ

SG-8504CA-QRLZ

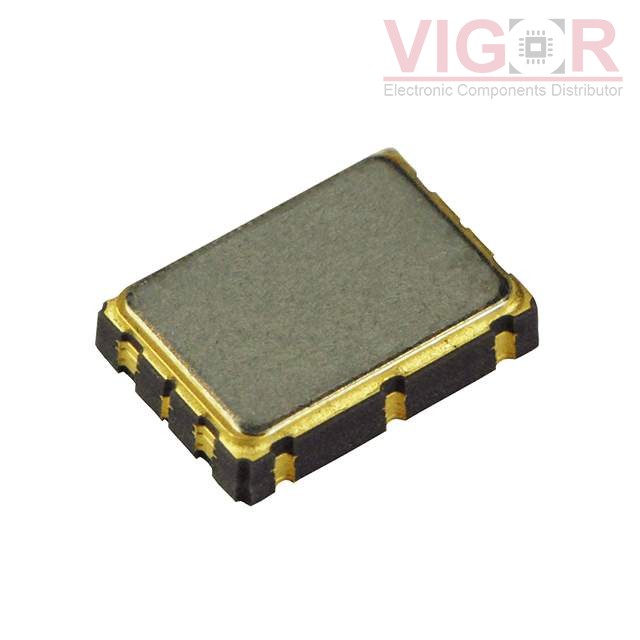

Image is for reference,
please contact us to get the real picture

Part No :

SG-8504CA-QRLZ

Manufacturer
Epson
Description
XTAL OSC PROG XO LVPECL 2.5-3.3V
Catalog
Programmable Oscillators
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
SG-8504CA-QRLZ PDF
Availability
226 pieces
Unit Price
$16.83000

Current price of SG-8504CA-QRLZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SG-8504CA-QRLZ Specifications
Type Description
Series:SG-8504CA
Package:Tube
Part Status:Active
Base Resonator:Crystal
Type:XO (Standard)
Programmable Type:Programmed by Digi-Key (Enter your frequency in Web Order Notes)
Available Frequency Range:50 MHz ~ 800.0 MHz
Function:Enable/Disable
Output:LVPECL
Voltage - Supply:2.5V ~ 3.3V
Frequency Stability:-
Frequency Stability (Total):±50ppm
Operating Temperature:-40°C ~ 85°C
Spread Spectrum Bandwidth:-
Current - Supply (Max):90mA
Ratings:-
Mounting Type:Surface Mount
Package / Case:8-SMD, No Lead
Size / Dimension:0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max):0.067" (1.70mm)
