HMC513LP5ETR

HMC513LP5ETR

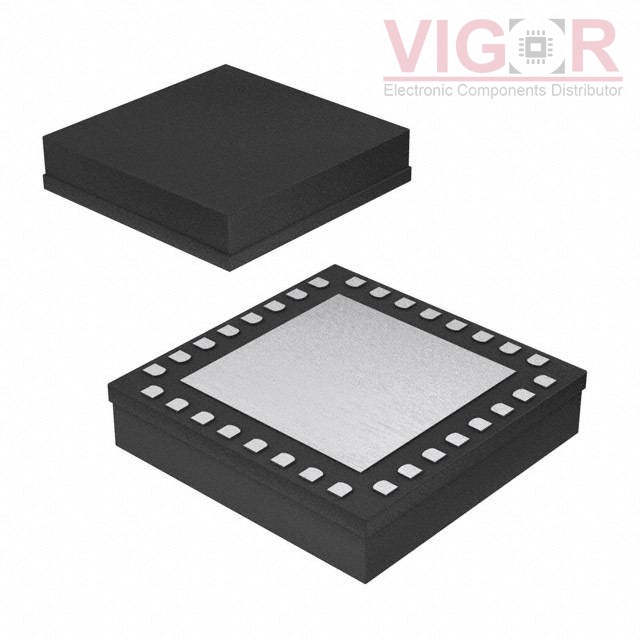

Image is for reference,
please contact us to get the real picture

Part No :

HMC513LP5ETR

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
VCO 5.4725/10.945GHZ 2-13V 5X5MM
Catalog
VCOs (Voltage Controlled Oscillators)
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
HMC513LP5ETR PDF
Availability
500 pieces
Unit Price
$29.43000

Current price of HMC513LP5ETR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMC513LP5ETR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Frequency Range:5.215 ~ 5.73GHz, 10.43 ~ 11.46GHz
Frequency - Center:5.4725GHz, 10.945GHz
Voltage - Supply:3V
Tuning Voltage (VDC):2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):15
Icc Max:290mA
Pushing (MHz/V):25
Power (dBm):-7±3, 8±3, 7.5±2.5
Phase Noise Typ (dBc/Hz):-110
Operating Temperature:-40°C ~ 85°C
Package / Case:32-VFQFN Exposed Pad, CSP
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:0.039" (1.00mm)
