HMC508LP5E

HMC508LP5E

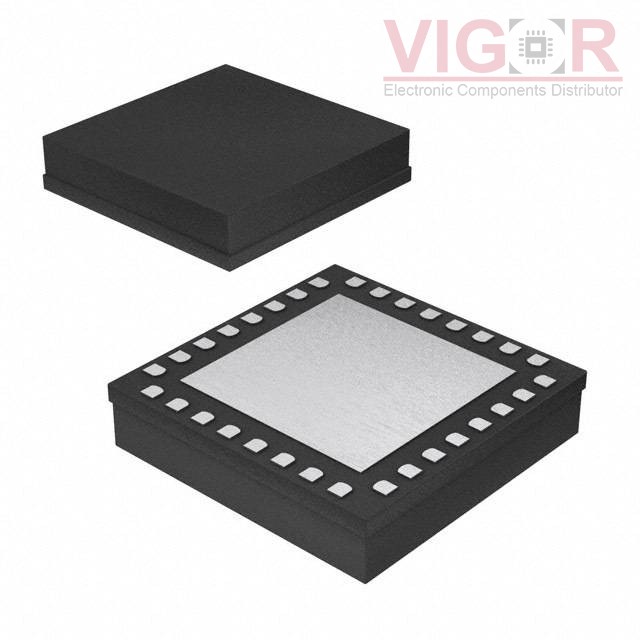

Image is for reference,
please contact us to get the real picture

Part No :

HMC508LP5E

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
VCO 3.875GHZ/7.75GHZ 2-13V 5X5MM
Catalog
VCOs (Voltage Controlled Oscillators)
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
HMC508LP5E PDF
Availability
148 pieces
Unit Price
$38.26000

Current price of HMC508LP5E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMC508LP5E Specifications
Type Description
Series:HMC508
Package:Strip
Part Status:Active
Frequency Range:3.65 ~ 4.1GHz, 7.3 ~ 8.2GHz
Frequency - Center:3.875GHz, 7.75GHz
Voltage - Supply:5V
Tuning Voltage (VDC):2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):20
Icc Max:280mA
Pushing (MHz/V):10
Power (dBm):14.5±2.5, 7±3
Phase Noise Typ (dBc/Hz):-116
Operating Temperature:-40°C ~ 85°C
Package / Case:32-VFQFN Exposed Pad, CSP
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:0.039" (1.00mm)
