HMC5132LP5E

HMC5132LP5E

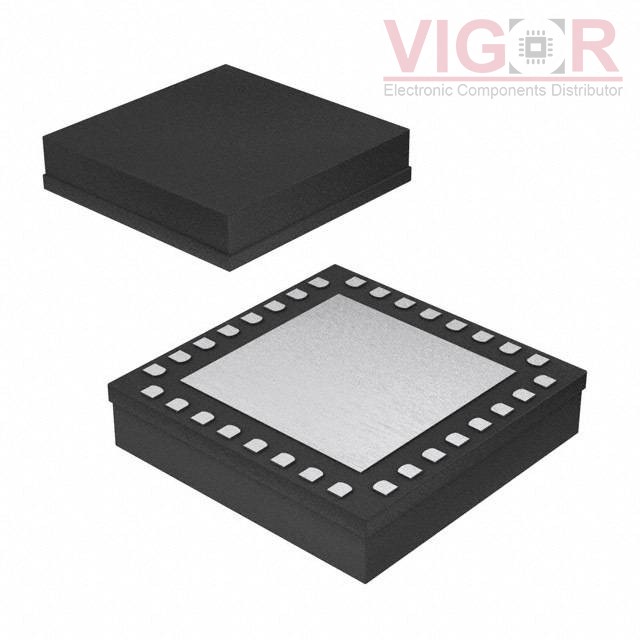

Image is for reference,
please contact us to get the real picture

Part No :

HMC5132LP5E

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
VCO 39.105/10.945GHZ 2-13V 5X5MM
Catalog
VCOs (Voltage Controlled Oscillators)
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
HMC5132LP5E PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of HMC5132LP5E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HMC5132LP5E Specifications
Type Description
Series:HMC513
Package:Bulk
Part Status:Obsolete
Frequency Range:5.2 ~ 5.73GHz, 10.43 ~ 22.46GHz
Frequency - Center:39.105GHz, 10.945GHz
Voltage - Supply:3V
Tuning Voltage (VDC):2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):15
Icc Max:290mA
Pushing (MHz/V):25 (Typ)
Power (dBm):-7 ±3, 8 ±3, 7.5 ±2.5
Phase Noise Typ (dBc/Hz):-110
Operating Temperature:-40°C ~ 85°C
Package / Case:32-VFQFN Exposed Pad, CSP
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:0.039" (1.00mm)
