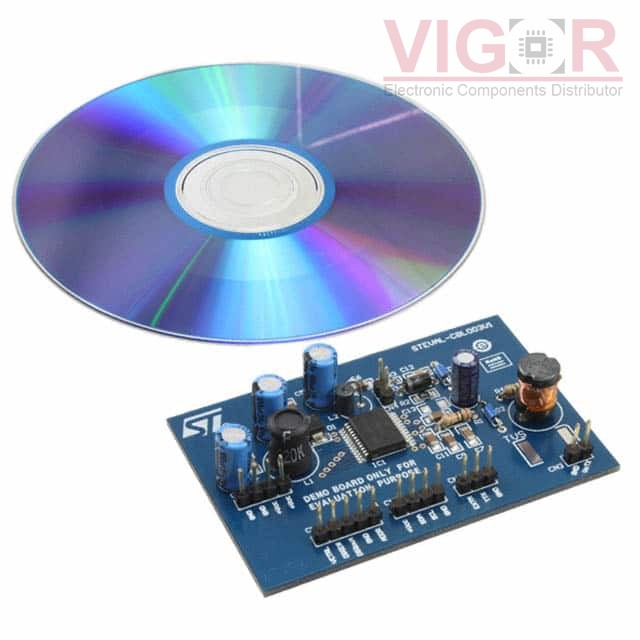

STEVAL-CBL003V1

STEVAL-CBL003V1

Image is for reference,
please contact us to get the real picture

Part No :

STEVAL-CBL003V1

Manufacturer
STMicroelectronics
Description
BOARD EVAL BASED ON LNBH23
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
STEVAL-CBL003V1 PDF
Availability
14 pieces
Unit Price
$83.88000

Current price of STEVAL-CBL003V1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STEVAL-CBL003V1 Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Main Purpose:Special Purpose DC/DC, LNB
Outputs and Type:1, Non-Isolated
Power - Output:-
Voltage - Output:13V ~ 18V
Current - Output:-
Voltage - Input:8V ~ 15V
Regulator Topology:Boost
Frequency - Switching:220kHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LNBH23
