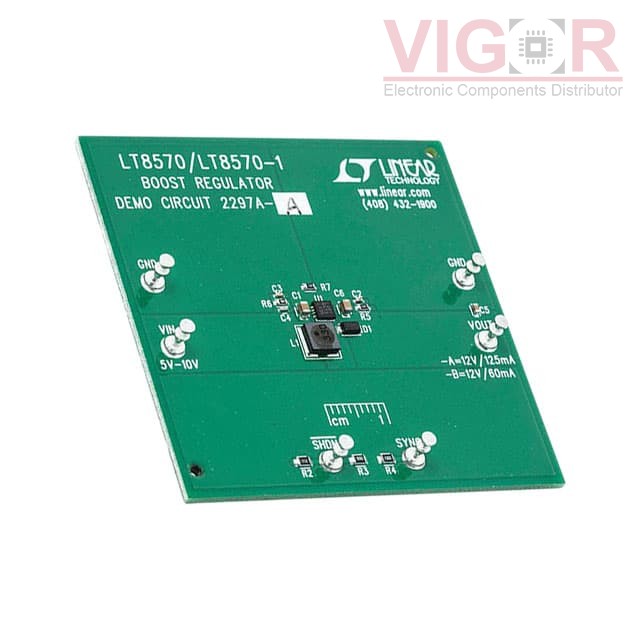

DC2297A-B

DC2297A-B

Image is for reference,
please contact us to get the real picture

Part No :

DC2297A-B

Manufacturer
Linear Technology (Analog Devices, Inc.)
Description
LT8570-1 DEMO BOARD 5V TO 10V IN
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
DC2297A-B PDF
Availability
0 pieces
Unit Price
$150.00000

Current price of DC2297A-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2297A-B Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Main Purpose:DC/DC, Step Up
Outputs and Type:1, Non-Isolated
Power - Output:-
Voltage - Output:12V, 12V
Current - Output:60mA, 125mA
Voltage - Input:5V ~ 10V
Regulator Topology:Boost
Frequency - Switching:1.5MHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LT8570, LT8570-1
