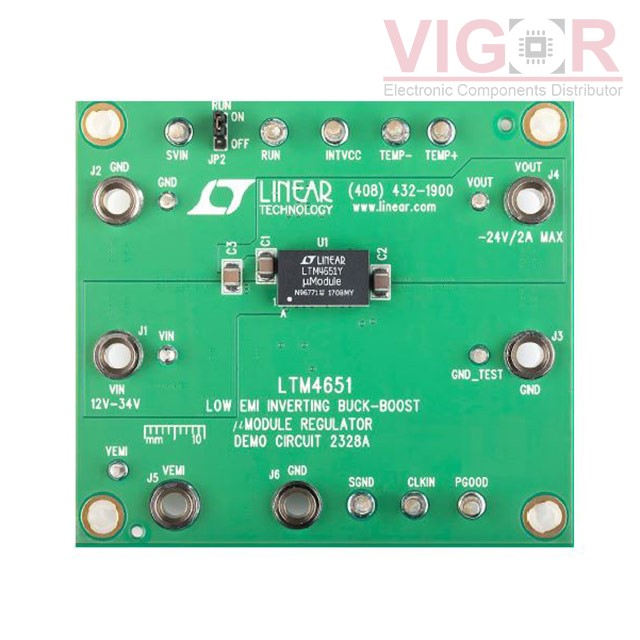

DC2328A

Image is for reference,
please contact us to get the real picture

Part No :: DC2328A

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: DEMO BOARD FOR LTM4651

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Aug 19 - Aug 23 2025

DataSheet: DC2328A PDF

Availability: 13 pieces

Unit Price: ~~$65.00000~~

Current price of DC2328A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DC2328A Specifications

Type	Description
Series:	µModule®
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Negative Inverter
Outputs and Type:	1, Non-Isolated
Power - Output:	-
Voltage - Output:	-24V
Current - Output:	2A
Voltage - Input:	12V ~ 34V
Regulator Topology:	Inverting
Frequency - Switching:	1.2MHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LTM4651

Please confirm the specifications of the products when ordering.
