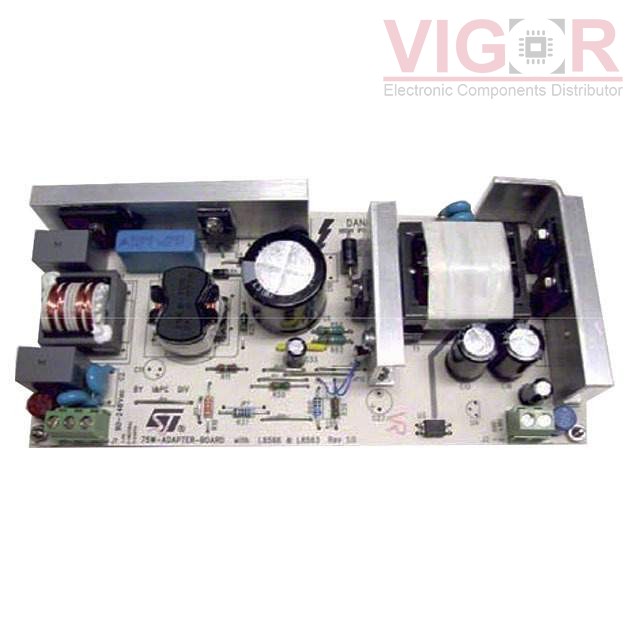

EVL6566A-75WADP

Image is for reference,
please contact us to get the real picture

Part No :: EVL6566A-75WADP

Manufacturer: STMicroelectronics

Description: BOARD EVAL FOR L6566A

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: EVL6566A-75WADP PDF

Availability: 0 pieces

Unit Price: ~~$128.91000~~

Current price of EVL6566A-75WADP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EVL6566A-75WADP Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	AC/DC, Primary and Secondary Side with PFC
Outputs and Type:	1, Isolated
Power - Output:	75 W
Voltage - Output:	19V
Current - Output:	4A
Voltage - Input:	90 ~ 264 VAC
Regulator Topology:	-
Frequency - Switching:	65kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	L6563, L6566A, TSM1014
