LMZ14201EXTEVAL/NOPB

LMZ14201EXTEVAL/NOPB

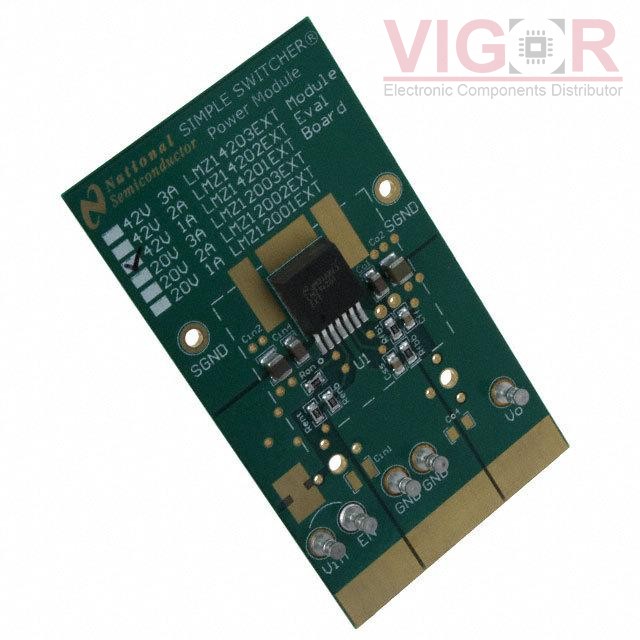

Image is for reference,
please contact us to get the real picture

Part No :

LMZ14201EXTEVAL/NOPB

Manufacturer
Texas Instruments
Description
BOARD EVAL LMZ14201EXT
Catalog
Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
LMZ14201EXTEVAL/NOPB PDF
Availability
33 pieces
Unit Price
$58.80000

Current price of LMZ14201EXTEVAL/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LMZ14201EXTEVAL/NOPB Specifications
Type Description
Series:SIMPLE SWITCHER®
Package:Box
Part Status:Obsolete
Main Purpose:DC/DC, Step Down
Outputs and Type:1, Non-Isolated
Power - Output:-
Voltage - Output:3.3V
Current - Output:1A
Voltage - Input:6V ~ 24V
Regulator Topology:Buck
Frequency - Switching:Up to 1MHz
Board Type:Fully Populated
Supplied Contents:Board(s)
Utilized IC / Part:LMZ14201EXT
