CDBHM120L-HF

CDBHM120L-HF

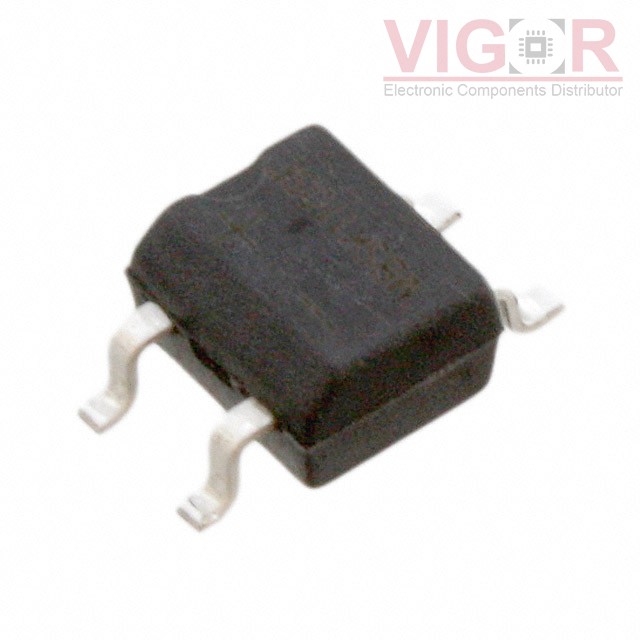

Image is for reference,
please contact us to get the real picture

Part No :

CDBHM120L-HF

Manufacturer
Comchip Technology
Description
BRIDGE RECT 1PHASE 20V 1A MBS
Catalog
Diodes - Bridge Rectifiers
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
CDBHM120L-HF PDF
Availability
0 pieces
Unit Price
$0.22016

Current price of CDBHM120L-HF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CDBHM120L-HF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
Diode Type:Single Phase
Technology:Schottky
Voltage - Peak Reverse (Max):20 V
Current - Average Rectified (Io):1 A
Voltage - Forward (Vf) (Max) @ If:550 mV @ 1 A
Current - Reverse Leakage @ Vr:500 µA @ 20 V
Operating Temperature:-55°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-269AA, 4-BESOP
Supplier Device Package:MBS
