EDF1DS-E3/45

EDF1DS-E3/45

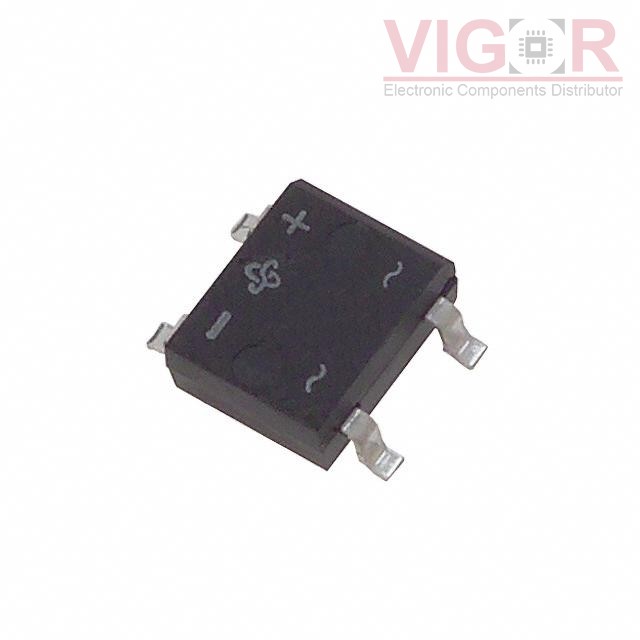

Image is for reference,
please contact us to get the real picture

Part No :

EDF1DS-E3/45

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
BRIDGE RECT 1PHASE 200V 1A DFS
Catalog
Diodes - Bridge Rectifiers
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
EDF1DS-E3/45 PDF
Availability
0 pieces
Unit Price
$0.40035

Current price of EDF1DS-E3/45 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EDF1DS-E3/45 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Diode Type:Single Phase
Technology:Standard
Voltage - Peak Reverse (Max):200 V
Current - Average Rectified (Io):1 A
Voltage - Forward (Vf) (Max) @ If:1.05 V @ 1 A
Current - Reverse Leakage @ Vr:5 µA @ 200 V
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:4-SMD, Gull Wing
Supplier Device Package:DFS
