CMPSH-3SE TR PBFREE

CMPSH-3SE TR PBFREE

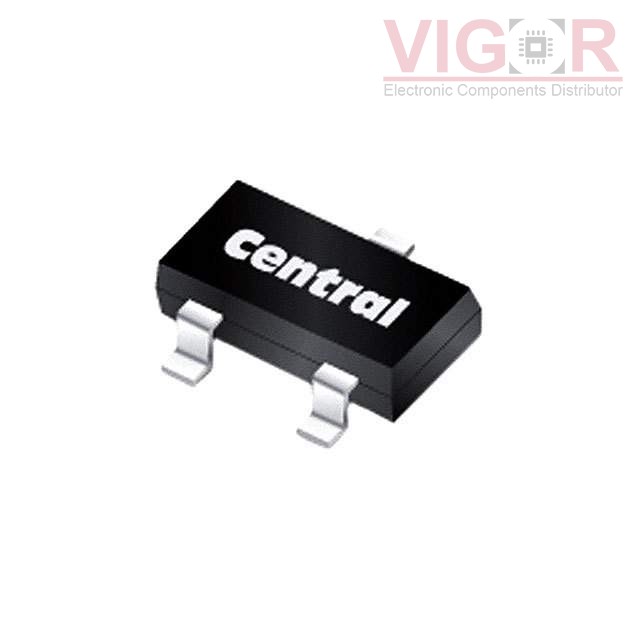

Image is for reference,
please contact us to get the real picture

Part No :

CMPSH-3SE TR PBFREE

Manufacturer
Central Semiconductor
Description
DIODE ARRAY SCHOTTKY 40V SOT23
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
CMPSH-3SE TR PBFREE PDF
Availability
2445 pieces
Unit Price
$0.51000

Current price of CMPSH-3SE TR PBFREE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CMPSH-3SE TR PBFREE Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Diode Configuration:1 Pair Series Connection
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io) (per Diode):200mA
Voltage - Forward (Vf) (Max) @ If:1 V @ 200 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):5 ns
Current - Reverse Leakage @ Vr:500 nA @ 25 V
Operating Temperature - Junction:-65°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23
