MBR20200PT C0G

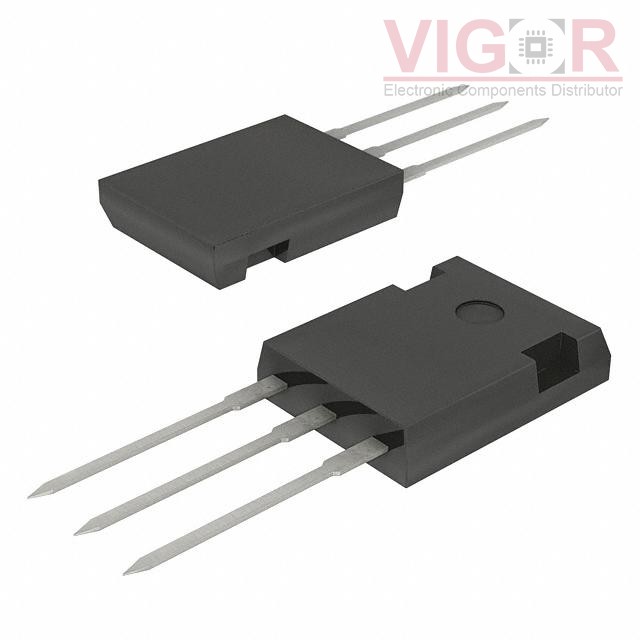

Image is for reference,
please contact us to get the real picture

Part No :: MBR20200PT C0G

Manufacturer: TSC (Taiwan Semiconductor)

Description: DIODE ARRAY SCHOTTKY 200V TO247

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: MBR20200PT C0G PDF

Availability: 0 pieces

Unit Price: ~~$1.09037~~

Current price of MBR20200PT C0G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MBR20200PT C0G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io) (per Diode):	20A
Voltage - Forward (Vf) (Max) @ If:	1.02 V @ 20 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	100 µA @ 200 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD (TO-3P)

Please confirm the specifications of the products when ordering.
