TSI30H120CW C0G

TSI30H120CW C0G

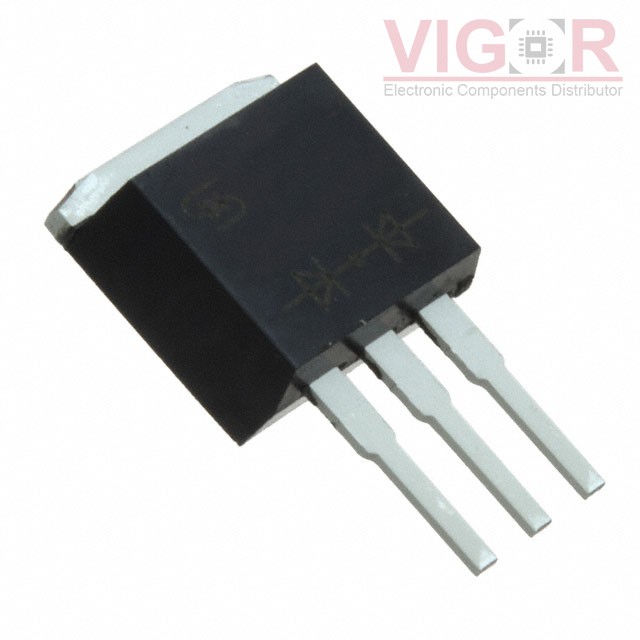

Image is for reference,
please contact us to get the real picture

Part No :

TSI30H120CW C0G

Manufacturer
TSC (Taiwan Semiconductor)
Description
DIODE ARRAY SCHOTTKY 120V I2PAK
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
TSI30H120CW C0G PDF
Availability
0 pieces
Unit Price
$0.53535

Current price of TSI30H120CW C0G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSI30H120CW C0G Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Diode Configuration:1 Pair Common Cathode
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):120 V
Current - Average Rectified (Io) (per Diode):15A
Voltage - Forward (Vf) (Max) @ If:840 mV @ 15 A
Speed:Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:250 µA @ 120 V
Operating Temperature - Junction:-55°C ~ 150°C
Mounting Type:Through Hole
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:I2PAK
