DD540N26KHPSA1

DD540N26KHPSA1

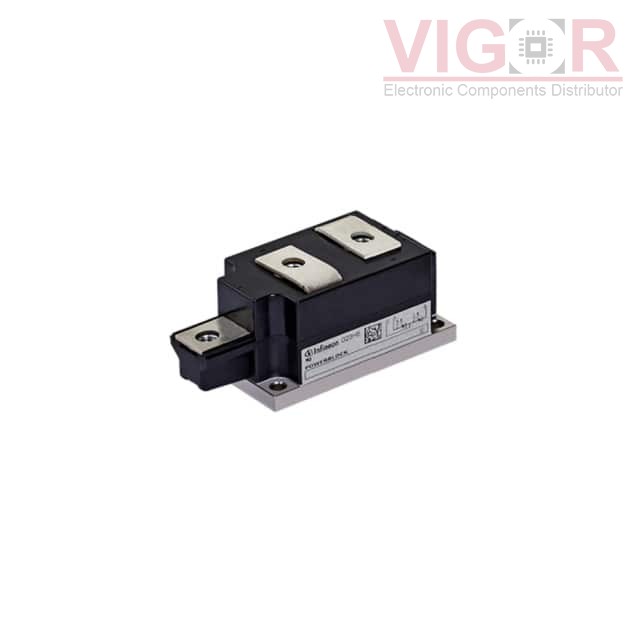

Image is for reference,
please contact us to get the real picture

Part No :

DD540N26KHPSA1

Manufacturer
IR (Infineon Technologies)
Description
DIODE MODULE GP 2600V 540A
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
DD540N26KHPSA1 PDF
Availability
2 pieces
Unit Price
$380.65000

Current price of DD540N26KHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DD540N26KHPSA1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Diode Configuration:1 Pair Series Connection
Diode Type:Standard
Voltage - DC Reverse (Vr) (Max):2600 V
Current - Average Rectified (Io) (per Diode):540A
Voltage - Forward (Vf) (Max) @ If:1.48 V @ 1700 A
Speed:Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:40 mA @ 2600 V
Operating Temperature - Junction:-40°C ~ 150°C
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:Module
