BAS70-09P6FILM

BAS70-09P6FILM

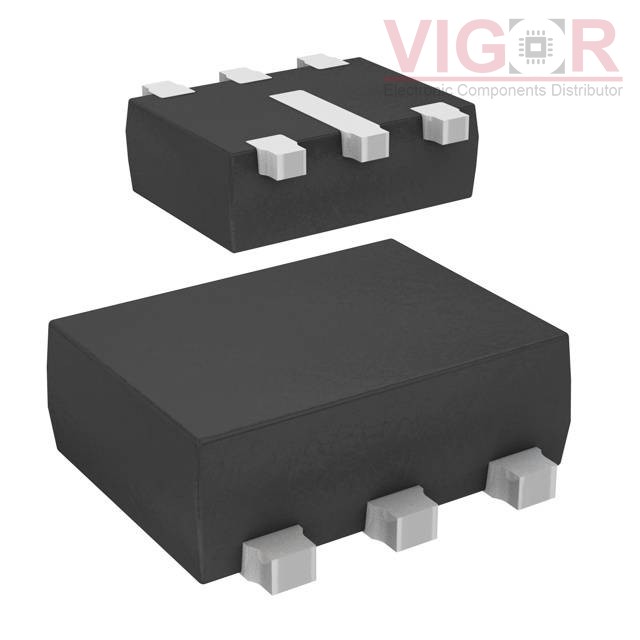

Image is for reference,
please contact us to get the real picture

Part No :

BAS70-09P6FILM

Manufacturer
STMicroelectronics
Description
DIODE ARRAY SCHOTTKY 70V SOT666
Catalog
Diodes - Rectifiers - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
BAS70-09P6FILM PDF
Availability
0 pieces
Unit Price
$0.39000

Current price of BAS70-09P6FILM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAS70-09P6FILM Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):70 V
Current - Average Rectified (Io) (per Diode):70mA (DC)
Voltage - Forward (Vf) (Max) @ If:1 V @ 15 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):-
Current - Reverse Leakage @ Vr:10 µA @ 70 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:SOT-563, SOT-666
Supplier Device Package:SOT-666
